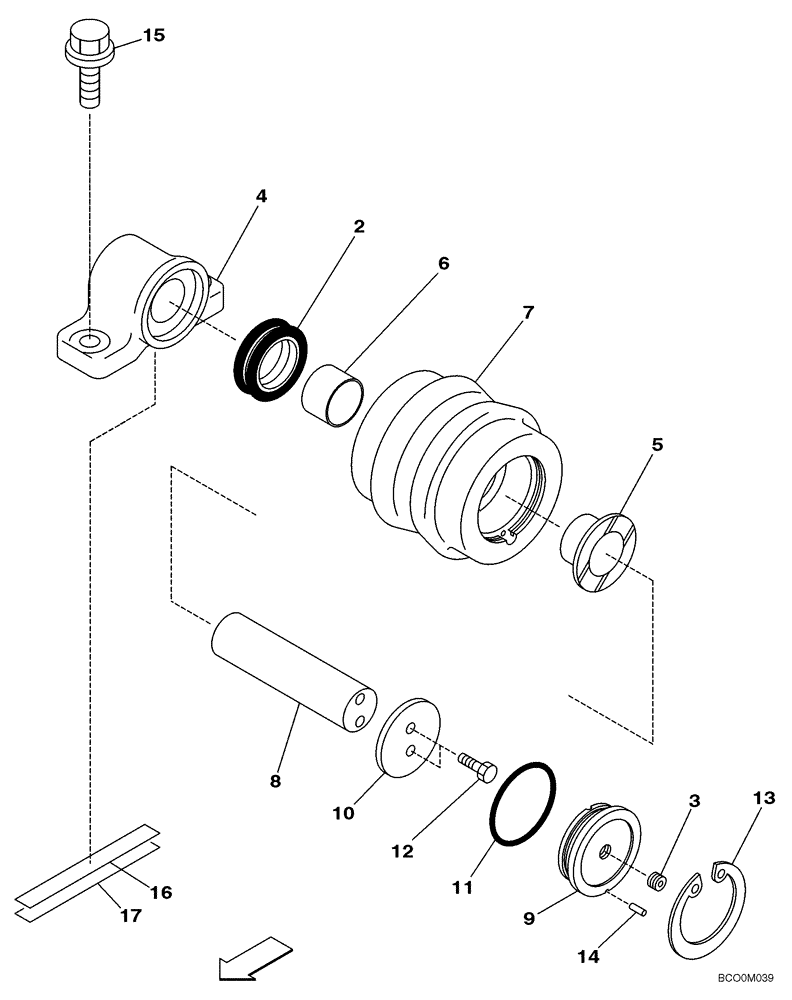

Запчасти Case CX240 (05-07) - TRACK - ROLLER, UPPER; PIN DAC0724099 - DAC0724170 (11) - TRACKS/STEERING

161707A1

ROLLER ASSY.

Incl. 2 - 14

4шт.

2

159399A1

SEAL,56mm ID x 76mm OD x 25mm Thk

1шт.

3

150821A1

PLUG

1шт.

4

161713A1

CASING, BEARING ROLL

1шт.

5

158776A1

BUSHING,46mm ID x 70mm OD x 42mm L

1шт.

6

158777A1

BUSHING,46mm ID x 50mm OD x 38mm L

1шт.

7

161708A1

TRACK ROLLER

Carrier

1шт.

8

159692A1

WHEEL SHAFT

1шт.

9

161709A1

COVER

1шт.

10

159685A1

PLATE, THRUST

1шт.

11

154667A1

O-RING

1шт.

12

626-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 10.9, Full Thd

2шт.

13

800-2185

SNAP RING,M85 x 3, Int

1шт.

14

738-1312

LOCK PIN,M3 x 12, Slotted

1шт.

15

627-20050

BOLT,Hex, M20 x 2.5 x 50mm, Cl 10.9, Full Thd

8шт.

150817A1

WASHER,21mm ID x 40mm OD x 4.5mm Thk

8шт.

16

150009A1

SHIM

0,8 mm (0,003 in)

4шт.

17

162197A1

SHIM

4шт.
