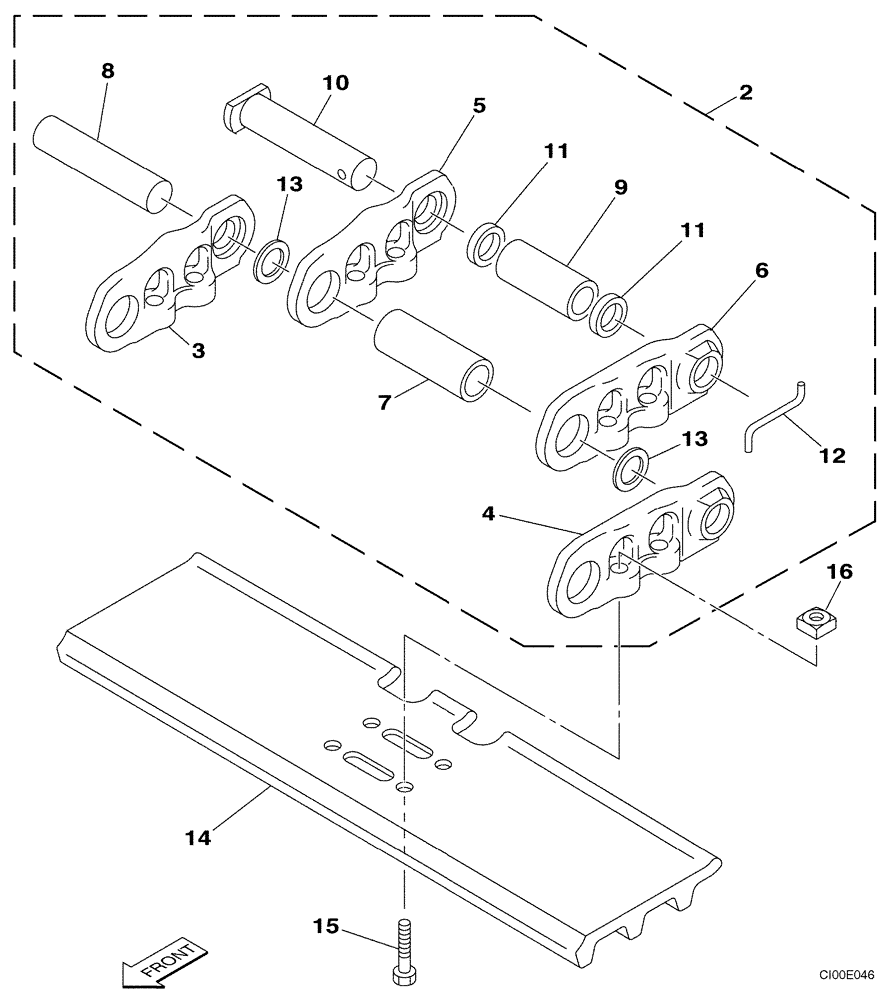

Запчасти Case CX240 (05-04D) - TRACK CHAINS, 800 MM (31-1/2 IN) - P.I.N. DAC0724099 - DAC0724274 (11) - TRACKS/STEERING

2

168275A1

CHAIN (CE)

Incl. 3 - 13; Production Only, Service With Aftermarket Track Chain Assembly KBP1319PECA (1) and KLP0161PECA (204)

2шт.

3

159670A1

LINK

Track; Right Hand

50шт.

4

159671A1

LINK

Track; Left Hand

50шт.

5

168654A1

LINK

Master; Right Hand

1шт.

6

168655A1

LINK

Master; Left Hand

1шт.

7

168651A1

BUSHING

50шт.

8

159672A1

PIN

50шт.

9

168652A1

BUSHING

1шт.

10

159676A1

HEADED PIN,36.3mm OD x 208mm L

Master

1шт.

11

159673A1

SPACER, RING

2шт.

12

159677A1

COTTER PIN,8mm OD

1шт.

13

168653A1

SEAL,39.8mm ID x 60.3mm OD x 5.6mm Thk

100шт.

14

159397A1

TRACK SHOE

102шт.

15

159668A1

BOLT,Hex, M20 x 1.5 x 53mm

Shoe

408шт.

16

151767A1

NUT

408шт.

KBP1319PECA

LINK

Aftermarket Track Chain Assembly; Also Order KLP0161PECA Nut

2шт.

KLP0161PECA

NUT

408шт.
