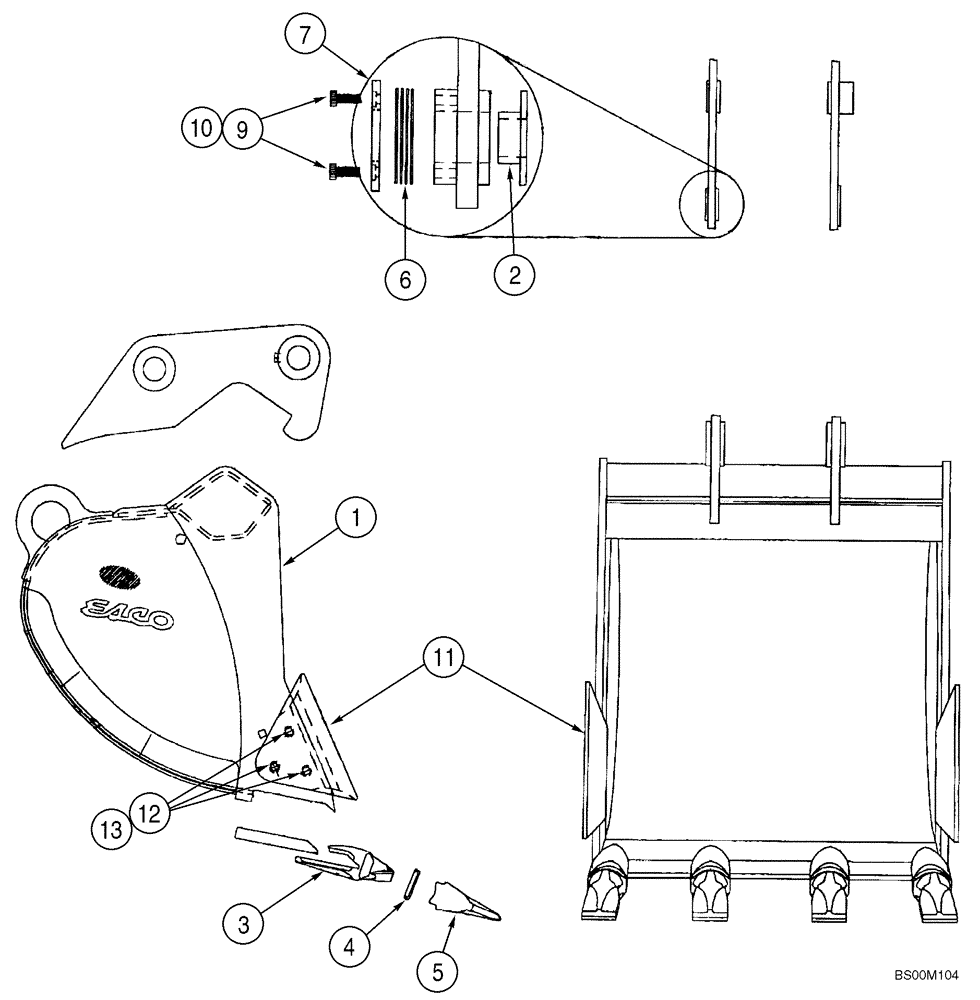

Запчасти Case CX240 (09-42A) - BUCKETS, ESCO - HEAVY DUTY BUCKETS (09) - CHASSIS

1

REF

INSTRUCTION

Bucket, 0,49 cu m (0,64 cu yd); With 4 Teeth

1шт.

1

REF

INSTRUCTION

Bucket, 0,65 cu m (0,85 cu yd); With 4 Teeth

1шт.

1

REF

INSTRUCTION

Bucket, 0,81 cu m (1,07 cu yd); With 5 Teeth

1шт.

1

REF

INSTRUCTION

Bucket, 0,98 cu m (1,29 cu yd); With 5 Teeth

1шт.

1

REF

INSTRUCTION

Bucket, 1,15 cu m (1,51 cu yd); With 5 Teeth

1шт.

2

372027A1

ADAPTER

1шт.

3

233797A1

ADAPTER

Tooth

4-5шт.

4

233799A1

BUCKET TOOTH KEY

4-5шт.

5

233798A1

TOOTH

4-5шт.

6

378630A1

SHIM

6шт.

7

378631A1

PLATE

1шт.

8

378632A1

PIN

Not Illustrated

2шт.

9

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

4шт.

10

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

4шт.

378649A1

KIT

Shroud; Incl. 11 - 13

1шт.

11

244961A1

SHROUD

2шт.

12

232-41314

LOCK NUT,7/8"-9, GC

6шт.

13

320-21444

CARRIAGE BOLT,#3, 7/8" - 9 x 2 3/4", Gr 8

6шт.

378642A1

KIT

Adjustment; Incl. 2, 6 - 10

1шт.
