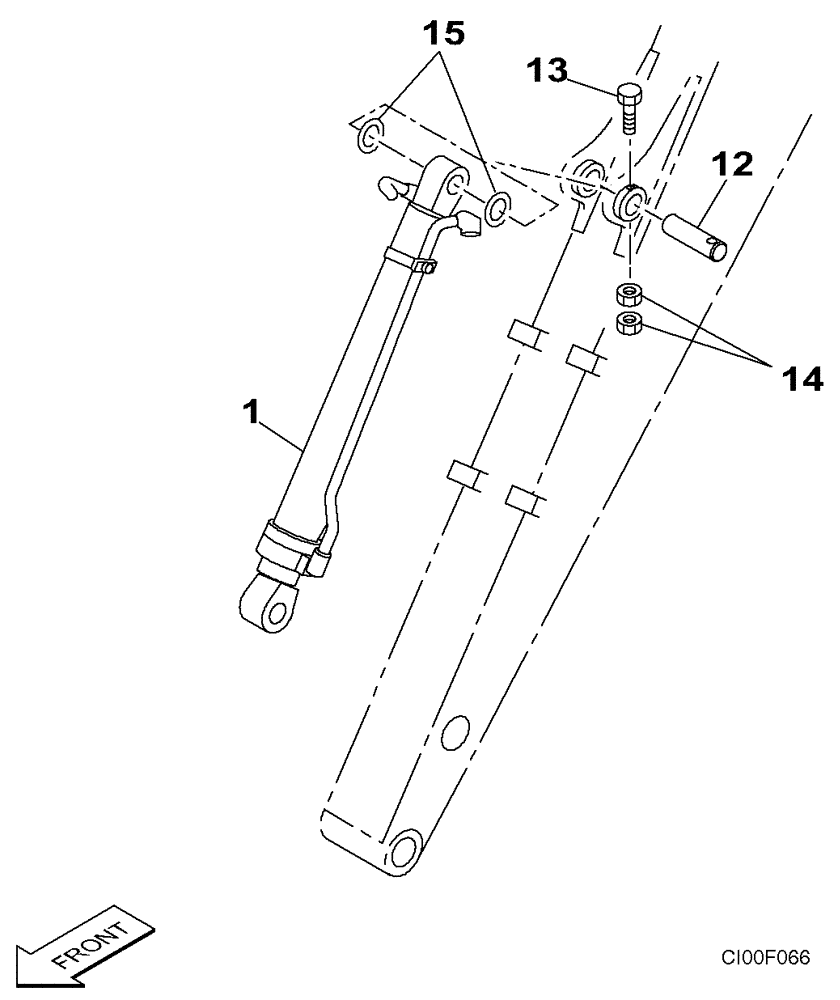

Запчасти Case CX240 (09-40) - BUCKET CYLINDER - MOUNTING (09) - CHASSIS

1

KNV1618

BUCKET CYLINDER

Assy; See Figure 08-49

1шт.

12

162773A1

PIN

1шт.

13

514-1111

BOLT,Hex, M16 x 1.5 x 130mm, Cl 10.9

1шт.

14

829-13416

NUT,M16 x 1.5, Cl 10

2шт.

15

160734A1

SHIM

2шт.
