(09-37) - BOOM CYLINDER, MOUNTING - MODELS WITHOUT LOAD HOLD

Запчасти Case CX240 (09-37) - BOOM CYLINDER, MOUNTING - MODELS WITHOUT LOAD HOLD (09) - CHASSIS

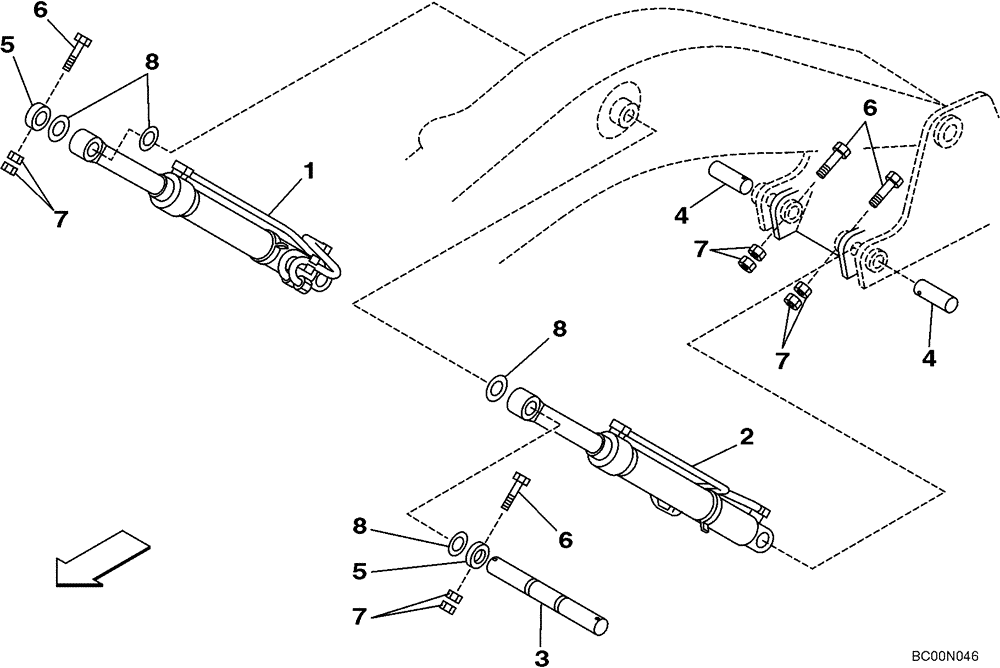

Схема запчастей Case CX240 - (09-37) - BOOM CYLINDER, MOUNTING - MODELS WITHOUT LOAD HOLD (09) - CHASSIS
2
8
6
7
4
7
1
3
6
8
7
6
8
4
5
5
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KBV1787

HYDRAULIC CYLINDER

Boom, Right Hand; Models Without Load Hold; See Figure 08-46

1шт.

2

KBV1788

HYDRAULIC CYLINDER

Boom, Left Hand; Models Without Load Hold; See Figure 08-47

1шт.

3

KBV1634

PIN

1шт.

4

159446A1

PIN,90mm OD x 261mm L

2шт.

5

159440A1

COLLAR

2шт.

6

514-1218

BOLT,Hex, M20 x 1.5 x 180mm, Cl 10.9

4шт.

7

829-11420

NUT,M20 x 1.5, Cl 10

8шт.

8

159458A1

ADJUSTING PLATE

3шт.
