Запчасти Case CX240 (09-26) - CAB - GLASS (09) - CHASSIS

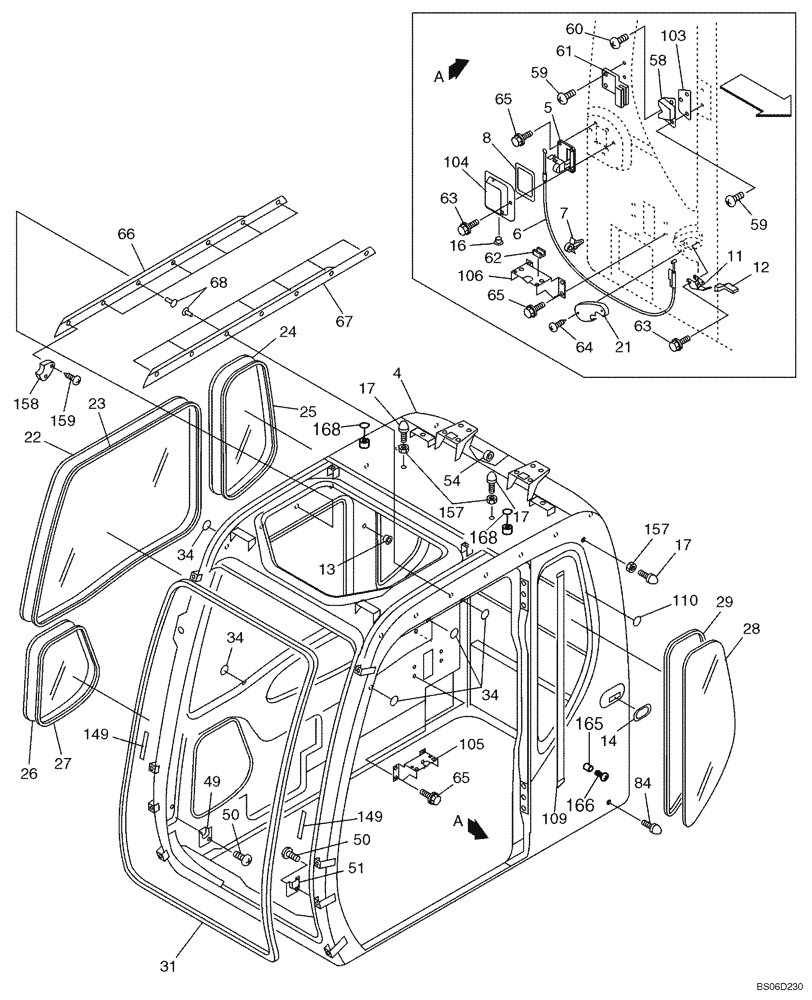

Схема запчастей Case CX240 - (09-26) - CAB - GLASS (09) - CHASSIS
65
51
6
50
165
34
62
22
29
6
59
17
103
168
4
68
110
54
109
63
168
31
28
84
7
17
34
67
5
14
11
65
159
166
8
158
21
49
157
65
106
50
17
25
58
12
61
64
63
157
59
149
6
27
23
149
104
16
26
60
13
105
34

Артикул

Название

Примечание

Количество

SIDE WINDOWS

1шт.

KHN3270

CAB

Complete; Incl. 4 - 159; Also Includes Parts on Figure(s) 04-08, 09-27, 09-28 - 09-31; P.I.N. DAC0721101 - DAC0211961

1шт.

KHN10070

CAB

Complete; Incl. 4 - 168; Also Includes Parts on Figure(s) 04-08, 09-27A, 09-28 - 09-30, 09-31A; P.I.N. DAC0211962 -

1шт.

4

KHN2943

CAB BODY

Frame; P.I.N. DAC0721101 - DAC0211961; Brackets on the Top of the Cab Frame Are Not Serviceable

1шт.

4

KHN3661

CAB BODY

Frame; P.I.N. DAC0211962 - ; Brackets on the Top of the Cab Frame Are Not Serviceable

1шт.

5

161384A1

RH DOOR LOCK

Door

1шт.

6

161380A1

CABLE

1шт.

7

161381A1

COLLAR

2шт.

8

161385A1

SEAL

Replaces KHN3026

1шт.

11

161376A1

LEVER

1шт.

12

161375A1

HANDLE

1шт.

13

161358A1

COAT HOOK

1шт.

14

161373A1

GROMMET

1шт.

16

161383A1

GROMMET

1шт.

17

161356A1

STOP

3шт.

21

161378A1

COVER

1шт.

22

KHN2939

GLASS

1шт.

23

KHN2637

WEATHERSTRIP

1шт.

24

KHN2941

GLASS

1шт.

25

KHN2639

WEATHERSTRIP

1шт.

26

KHN2940

GLASS

1шт.

27

KHN2641

WEATHERSTRIP

1шт.

28

KHN2938

GLASS

1шт.

29

KHN2936

SEAL, GLASS

1шт.

31

KHN2655

WEATHERSTRIP,4508mm L

1шт.

34

KHN2658

SEAL

5шт.

49

KHN11680

STOP LOCK

Replaces KHN2670

1шт.

50

KHN2671

SCREW

M6 x 1 x 20, If Used

2шт.

51

KHN11690

STOP LOCK

Replaces KHN2672

1шт.

54

KHN2676

STOP

1шт.

58

KHN2680

LATCH HOOK

1шт.

59

KHN2681

SCREW

M6 x 1 x 30

4шт.

60

KHN2682

SCREW,Spcl

M6 x 1 x 12

1шт.

61

KHN2683

HOLDER

1шт.

62

KHN2684

STOP

1шт.

63

KHN2686

BOLT,Spcl

5шт.

64

KHN2687

SCREW,Spcl

M5 x 14

4шт.

65

KHN2688

BOLT,Spcl

M8 x 25

12шт.

66

KHN2689

PROTECTOR

1шт.

67

KHN2690

PROTECTOR

1шт.

68

KHN2691

ANCHOR

13шт.

84

KHN2704

STOP

1шт.

103

KHN2722

LEDGER PLATE

1шт.

104

KHN2723

CAP ASSY.

1шт.

105

KHN2724

BRACKET

1шт.

106

KHN2725

SUPPORT

1шт.

109

KHN3234

GASKET

Replaces KHN2942

1шт.

110

KHN2729

SEAL

1шт.

149

KHN2982

PAD, RUBBER

2шт.

157

161357A1

NUT

3шт.

158

KHN2974

BRACKET

1шт.

159

KHN2975

SCREW,Spcl

2шт.

165

KHN3235

SPACER

P.I.N. DAC0721962 -

2шт.

166

KHN3236

SCREW

P.I.N. DAC0721962 -

2шт.

168

KHN2947

PLUG

P.I.N. DAC0721962 -

2шт.

Выбрано товаров: 55
