(09-25) - AIR CONDITIONING - CONDENSER AND RECEIVER-DRIER

Запчасти Case CX240 (09-25) - AIR CONDITIONING - CONDENSER AND RECEIVER-DRIER (09) - CHASSIS

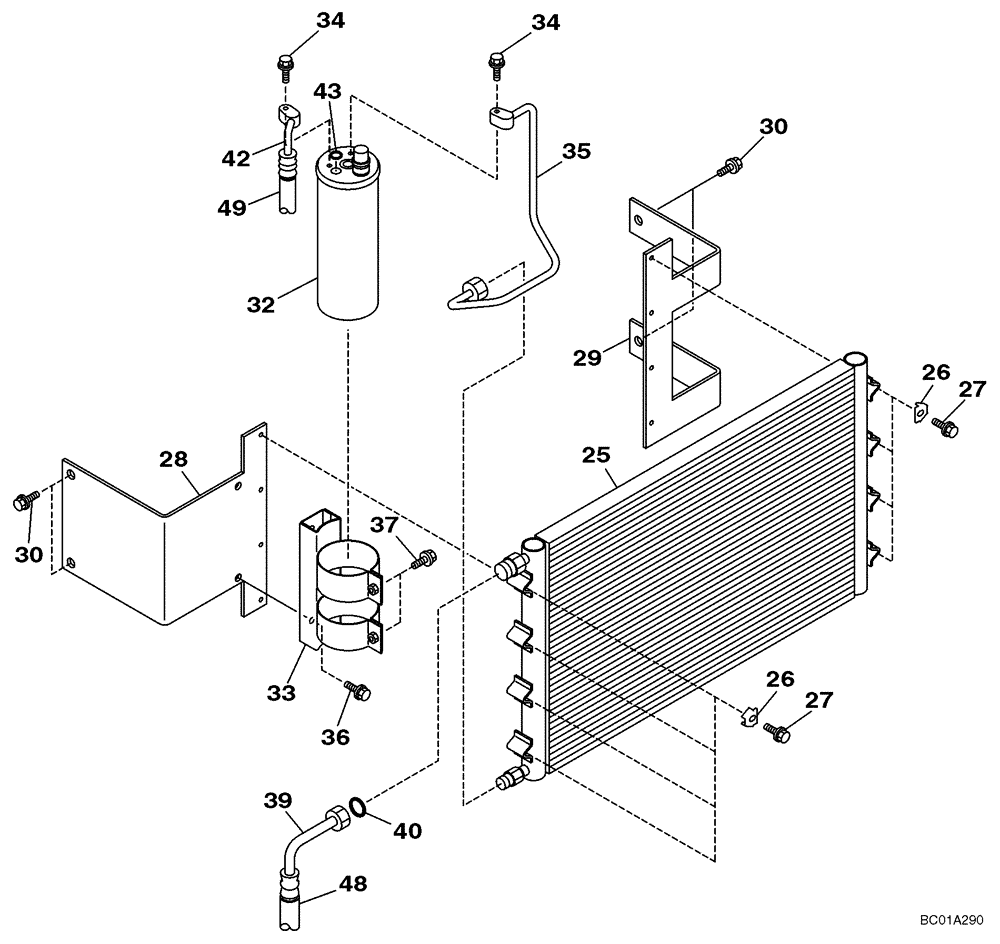

Схема запчастей Case CX240 - (09-25) - AIR CONDITIONING - CONDENSER AND RECEIVER-DRIER (09) - CHASSIS
26
48
25
42
27
33
37
39
32
34
35
36
26
29
27
40
34
30
30
49
43
28
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

CONDENSER

1шт.

25

KHR2592

CONDENSER

1шт.

26

KHR2593

BRACKET

8шт.

27

162059A1

BOLT,M6 x 45mm

8шт.

28

KRR1396

BRACKET

1шт.

29

KRR1397

BRACKET

1шт.

30

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

EVAPORATOR

1шт.

32

KHR3751

RECEIVER-DRYER

Replaces 167528A1 (includes high/low press switch)

1шт.

33

159635A1

SUPPORT

1шт.

34

162043A1

BOLT,Spcl, M6

2шт.

35

KHR2782

RIGID TUBE

1шт.

36

167320A1

BOLT,Spcl, M8 x 20mm

2шт.

37

159906A1

BOLT,Sems, Hex, M6 x 20mm, Spcl

2шт.

39

KHR3242

HOSE

Incl. 40, 41

1шт.

40

169053A1

O-RING

2шт.

41

KHR3053

CAP

Not Illustrated

1шт.

42

KHR3243

HOSE

Incl. 43

1шт.

43

169054A1

O-RING

2шт.

48

KHR3247

PLASTIC-RUBBER TUBE

1шт.

49

KRH1396

PLASTIC-RUBBER TUBE

1шт.
