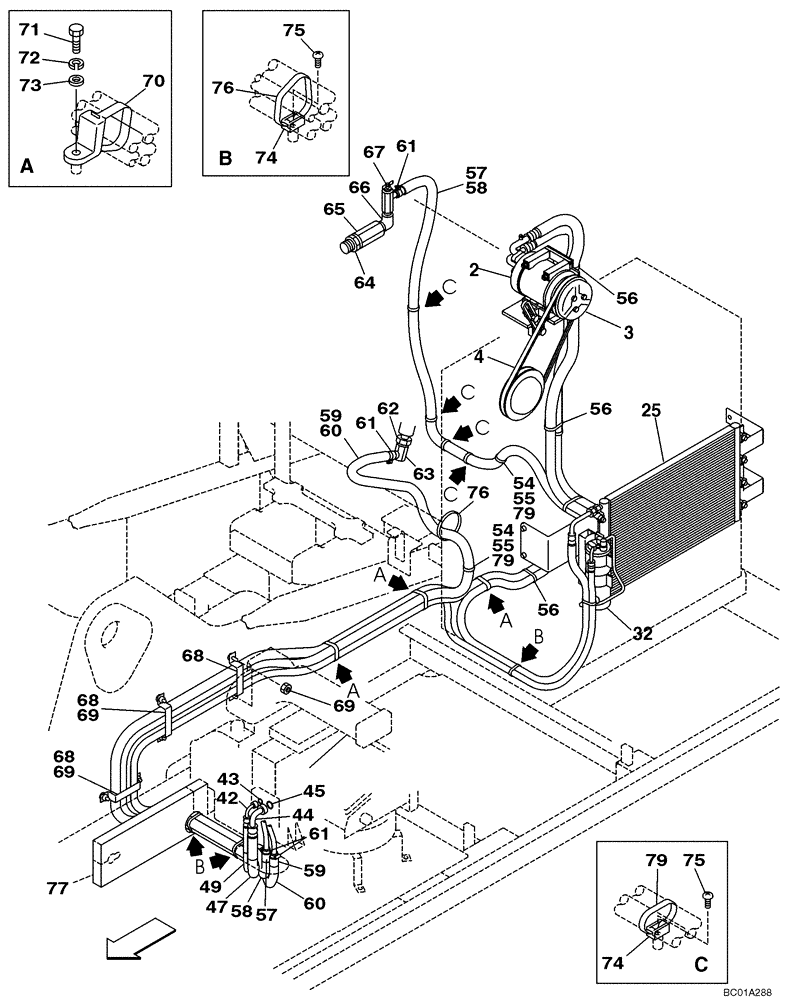

Запчасти Case CX240 (09-23) - AIR CONDITIONING - CONDENSER AND RECEIVER-DRIER (09) - CHASSIS

2

KHR3241

COMPRESSOR

See Figure 09-24

1шт.

2

KHR3241R

REMAN-A/C COMPRESSOR

CX240 CASE STANDARD, CX240LR CASE LONG REACH, Both CRAWLER EXCAVATOR (NORTH AMERICA)

1шт.

2

KHR3241C

CORE-A/C COMPRESSOR

Return Number

1шт.

3

KHR3246

CLUTCH

See Figure 09-24

1шт.

4

165843A1

V-BELT

1шт.

25

KHR2592

CONDENSER

See Figure 09-25

1шт.

32

KHR3751

RECEIVER-DRYER

See Figure 09-25, Replaces 167528A1 (includes high/low press switch)

1шт.

42

KHR3243

HOSE

Incl. 43

1шт.

43

169054A1

O-RING

2шт.

44

KHR3244

HOSE

Incl. 45

1шт.

45

169052A1

O-RING

2шт.

47

KBR0720

PLASTIC-RUBBER TUBE

1шт.

49

KRH1396

PLASTIC-RUBBER TUBE

1шт.

54

150860A1

COLLAR

2шт.

53

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

2шт.

56

150071A1

MOUNTING CLIP

4шт.

57

159186A1

HEATER HOSE,5000.00 mm

1шт.

58

KMR0843

PLASTIC-RUBBER TUBE

1шт.

59

151233A1

HOSE,13.00 mm ID x 3400.00 mm

1шт.

60

157921A1

PLASTIC-RUBBER TUBE,22 mm ID, 27 mm OD, 3300 mm Length

1шт.

61

157271A1

CLIP

4шт.

62

151588A1

BUSHING

1шт.

63

150383A1

ELBOW

1шт.

64

151588A1

BUSHING

1шт.

65

151110A1

BUSHING

1шт.

66

152159A1

ELBOW

1шт.

67

152664A1

VALVE

1шт.

68

159037A1

MOUNTING CLIP

3шт.

69

150469A1

FLANGE NUT

6шт.

70

KHR2582

CLAMP

3шт.

71

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

3шт.

72

892-11010

LOCK WASHER,M10

3шт.

73

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

3шт.

74

150860A1

COLLAR

10шт.

75

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

10шт.

76

150496A1

MOUNTING CLIP

250 mm (10 in)

7шт.

77

KRR1344

SEAL

1шт.

79

150071A1

MOUNTING CLIP

4шт.
