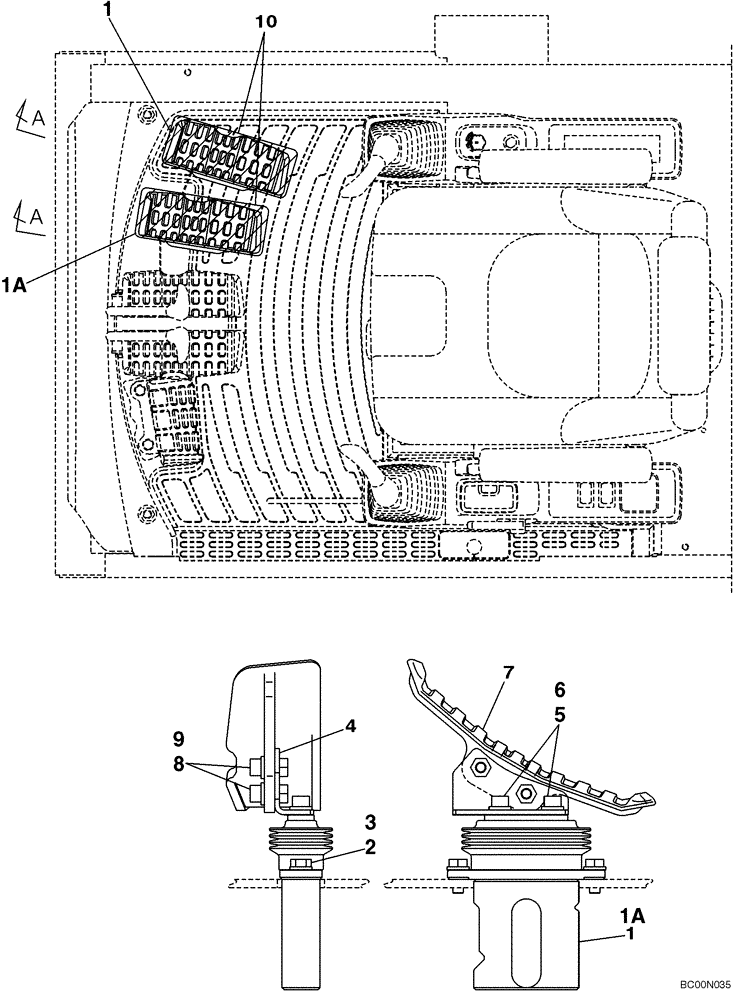

Запчасти Case CX240 (09-09B) - AUXILIARY HYDRAULIC CONTROL - TRAVEL CONTROL, SINGLE PEDAL (09) - CHASSIS

MODELS WITH AUXILIARY HYDRAULICS

1шт.

1

KRJ5864

CONTROL BLOCK

Single Pedal Travel Control; See Figure 08-85

1шт.

1a

KRJ5864

CONTROL BLOCK

Auxiliary Control; See Figure 08-85

1шт.

2

166052A1

BOLT

M10 x 25; 10.9

4шт.

3

150604A1

WASHER

If Used

4шт.

4

KHJ1643

BRACKET

2шт.

5

165404A1

BOLT,Hex Skt, M10 x 20mm

4шт.

6

150604A1

WASHER

4шт.

7

KHJ1629

PEDAL

2шт.

8

KHJ1820

BOLT,Hex Skt Hd

4шт.

9

150604A1

WASHER

4шт.

10

163782A1

SKIRT COVER

2шт.
