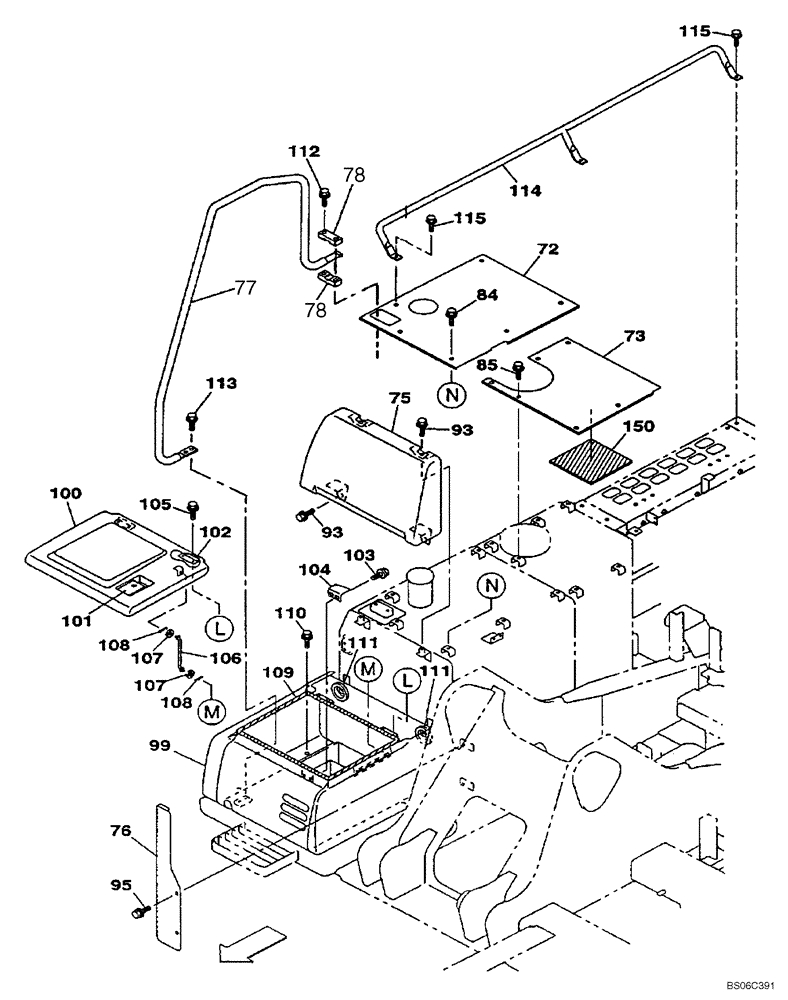

Запчасти Case CX240 (09-08A) - STORAGE BOX - INSULATION (P.I.N. DAC0724171 - ) (09) - CHASSIS

72

KRN2310Y2

COVER

1шт.

73

KRN2238Y2

COVER

1шт.

75

KRN2158Y2

COVER

1шт.

76

KRN2254Y2

COVER

1шт.

77

KHN3032Y2

STAY

1шт.

78

KHN3033

COLLAR

2шт.

84

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

5шт.

85

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

6шт.

93

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

95

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

99

KRN2157Y2

COVER

1шт.

100

KRN2203Y2

COVER

Incl. 101, 102

1шт.

101

150938A1

LOCK

1шт.

102

159118A1

HINGE

2шт.

103

166052A1

BOLT

2шт.

104

159114A1

BRACKET

1шт.

105

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

4шт.

106

159119A1

STAY

1шт.

107

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

108

153181A1

COTTER PIN

2шт.

109

KRN2295

RUBBER SEAL

1шт.

110

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

111

KHN2651

GROMMET

2шт.

112

167183A1

BOLT,Sems, M12 x 60mm, Cl 10.9

2шт.

113

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

114

KBN1056Y2

STAY

1шт.

115

166352A1

BOLT

2шт.

150

KRN2092

SEAL

1шт.
