Запчасти Case CX240 (09-08) - STORAGE BOX - INSULATION (P.I.N. DAC0724099 - DAC0724170) (09) - CHASSIS

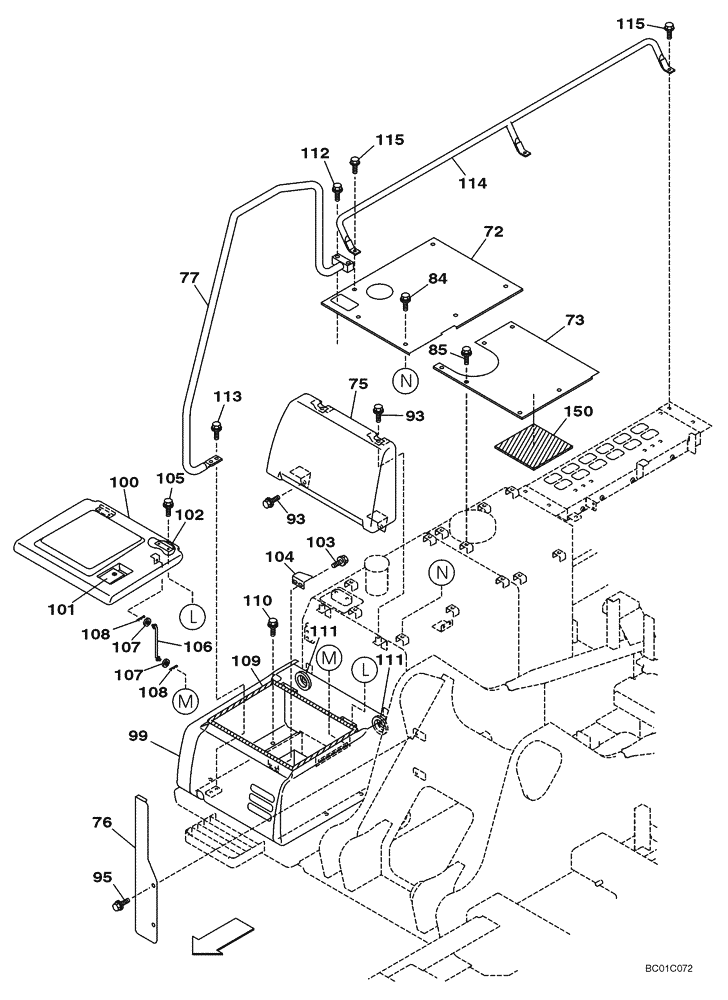

Схема запчастей Case CX240 - (09-08) - STORAGE BOX - INSULATION (P.I.N. DAC0724099 - DAC0724170) (09) - CHASSIS
106
85
111
107
109
77
115
101
75
76
99
100
111
108
102
113
115
103
93
150
110
112
107
95
108
84
72
105
104
93
114
73

Артикул

Название

Примечание

Количество

72

KRN2310Y2

COVER

Replaces KRN2310

1шт.

73

KRN2238Y2

COVER

Replaces KRN2238

1шт.

75

KRN2158Y2

COVER

Replaces KRN2158

1шт.

76

KRN2254Y2

COVER

Replaces KRN2254

1шт.

77

KHN3032Y2

STAY

1шт.

84

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

5шт.

85

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

6шт.

93

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

95

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

99

KRN2157Y2

COVER

Replaces KRN2157

1шт.

100

KRN2203Y2

COVER

Incl. 101, 102; Replaces KRN2203

1шт.

101

150938A1

LOCK

1шт.

102

159118A1

HINGE

2шт.

103

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

104

159114A1

BRACKET

1шт.

105

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

4шт.

106

159119A1

STAY

1шт.

107

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

108

153181A1

COTTER PIN

2шт.

109

KRN2295

RUBBER SEAL

1шт.

110

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

111

KHN2651

GROMMET

2шт.

112

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

2шт.

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

113

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

114

KBN1056Y2

STAY

Replaces KBN1056

1шт.

115

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

2шт.

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

150

KRN2092

SEAL

1шт.

Выбрано товаров: 30
