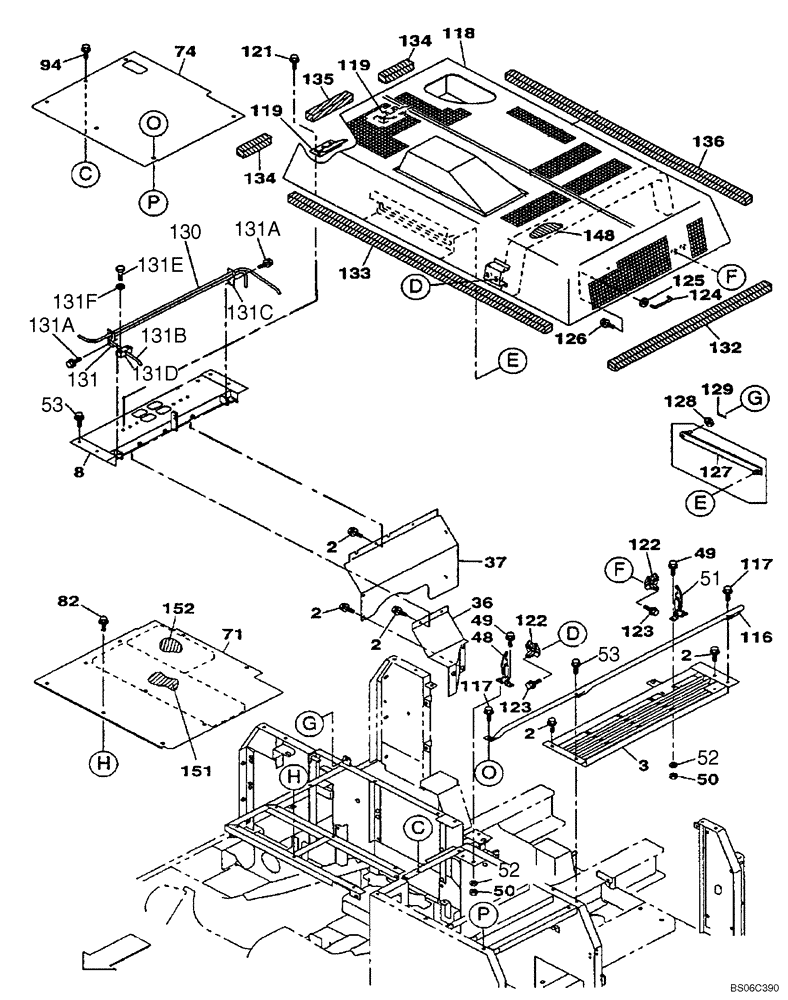

Запчасти Case CX240 (09-07A) - HOOD, ENGINE - INSULATION (P.I.N. DAC0724171 - ) (09) - CHASSIS

2

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

1шт.

3

KBN1061G1

SIEVE

1шт.

8

KBN1141G1

FRAME

1шт.

36

KBN1144

COVER

1шт.

37

KBN1145

COVER

1шт.

48

152423A1

LATCH

1шт.

49

166350A1

BOLT

4шт.

50

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

51

150790A1

LATCH

1шт.

52

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

53

166352A1

BOLT

2шт.

71

KRN2379Y2

COVER

1шт.

74

KRN2377Y2

COVER

1шт.

82

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

9шт.

94

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

5шт.

116

KBN1057Y2

STAY

1шт.

117

166352A1

BOLT

2шт.

118

KBN1161G1

ENGINE HOOD

Incl. 119

1шт.

119

KHN2143

HINGE

2шт.

121

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

6шт.

122

150785A1

STOP LOCK

2шт.

123

166350A1

BOLT

4шт.

124

KHN2537

HANDLE

1шт.

125

KHN2538

WASHER

2шт.

126

159906A1

BOLT,Sems, Hex, M6 x 20mm, Spcl

2шт.

127

KBN1115

STAY

1шт.

128

157548A1

WASHER

1шт.

129

KHN2373

PIN, SPLIT (COTTER)

PIN, COTTER

1шт.

130

KBN1149

STABILIZER BAR

1шт.

131

KBN1146

BRACKET

1шт.

131a

166350A1

BOLT

4шт.

131b

KBN1150

STABILIZER BAR

1шт.

131c

KBN1147

BRACKET

1шт.

131d

KBN1148

BRACKET

1шт.

131e

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

2шт.

131f

150811A1

WASHER

2шт.

132

KBN1072

FOAM INSULATION

1шт.

133

KBN1073

FOAM INSULATION

1шт.

134

KBN1074

FOAM INSULATION

2шт.

135

KBN1075

FOAM INSULATION

1шт.

136

KBN1076

FOAM INSULATION

1шт.

148

KBN1068

FOAM INSULATION

1шт.

151

KRN2258

FOAM INSULATION

1шт.

152

KRN2259

FOAM INSULATION

1шт.
