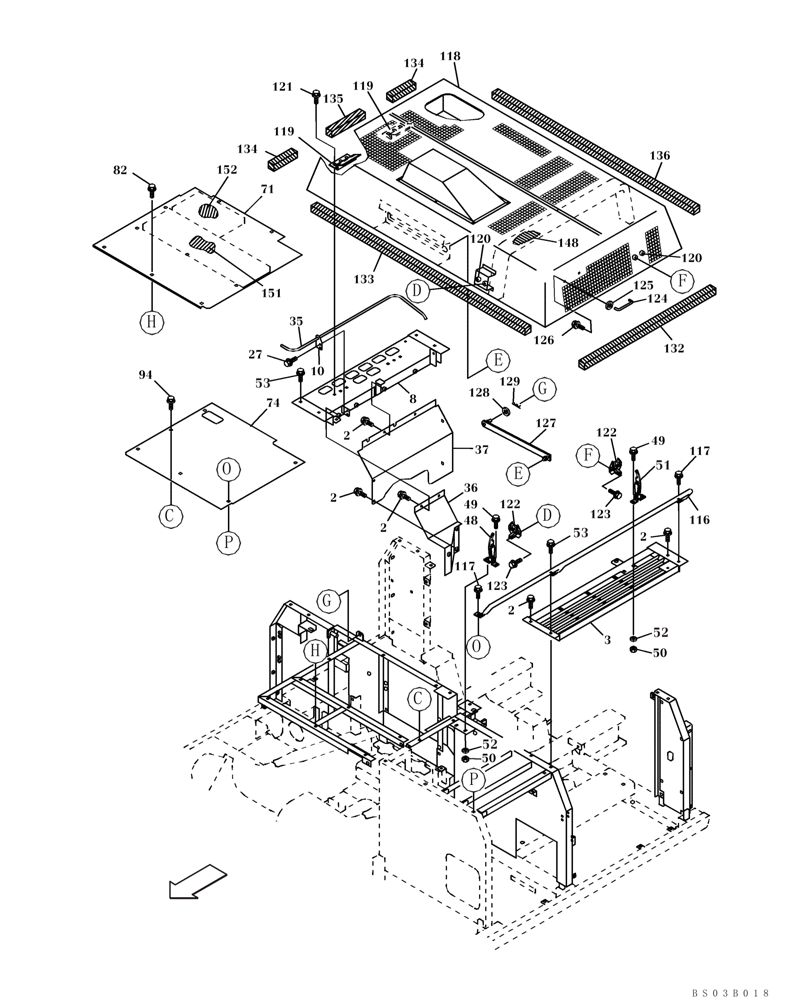

Запчасти Case CX240 (09-07) - HOOD, ENGINE - INSULATION (P.I.N. DAC0724099 - DAC0724170) (09) - CHASSIS
№
Артикул
Название
Примечание
Количество
2
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
1шт.
3
KBN1061Y2
SIEVE
Replaces KBN1061
1шт.
8
KBN1120Y2
FRAME
Replaces KBN1120
1шт.
10
KRN2289
BRACKET
1шт.
27
627-8016
BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd
2шт.
896-15008
WASHER,9mm ID x 21mm OD x 2.5mm Thk
2шт.
35
KBN1084
TORSION BAR
1шт.
36
KBN1062
COVER
1шт.
37
KBN1063
COVER
1шт.
48
152423A1
LATCH
1шт.
49
627-8020
BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd
4шт.
896-15008
WASHER,9mm ID x 21mm OD x 2.5mm Thk
4шт.
50
829-1408
NUT,Hex, M8 x 1.25, Cl 10.9
4шт.
51
150790A1
LATCH
1шт.
52
895-11008
WASHER,9mm ID x 16mm OD x 1.6mm Thk
4шт.
53
627-12030
BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd
2шт.
896-11012
WASHER,13.5mm ID x 24mm OD x 3mm Thk
2шт.
71
KRN2379Y2
COVER
Replaces KRN2379
1шт.
74
KRN2377Y2
COVER
Replaces KRN2377
1шт.
82
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
9шт.
94
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
5шт.
116
KBN1057Y2
STAY
Replaces KBN1057
1шт.
117
627-12030
BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd
2шт.
896-11012
WASHER,13.5mm ID x 24mm OD x 3mm Thk
2шт.
118
KBN1161G1
ENGINE HOOD
Incl. 119; Replaces KBN1117G1
1шт.
119
KHN2143
HINGE
2шт.
121
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
6шт.
122
150785A1
STOP LOCK
2шт.
123
627-8020
BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd
4шт.
896-15008
WASHER,9mm ID x 21mm OD x 2.5mm Thk
4шт.
124
KHN2537
HANDLE
1шт.
125
KHN2538
WASHER
2шт.
126
159906A1
BOLT,Sems, Hex, M6 x 20mm, Spcl
2шт.
127
KBN1115
STAY
Replaces KHN2537
1шт.
128
157548A1
WASHER
Replaces KHN2538
1шт.
129
KHN2373
PIN, SPLIT (COTTER)
PIN, COTTER
1шт.
132
KBN1072
FOAM INSULATION
1шт.
133
KBN1073
FOAM INSULATION
1шт.
134
KBN1074
FOAM INSULATION
2шт.
135
KBN1075
FOAM INSULATION
1шт.
136
KBN1076
FOAM INSULATION
1шт.
148
KBN1068
FOAM INSULATION
1шт.
151
KRN2258
FOAM INSULATION
1шт.
152
KRN2259
FOAM INSULATION
1шт.
Выбрано товаров: 44
