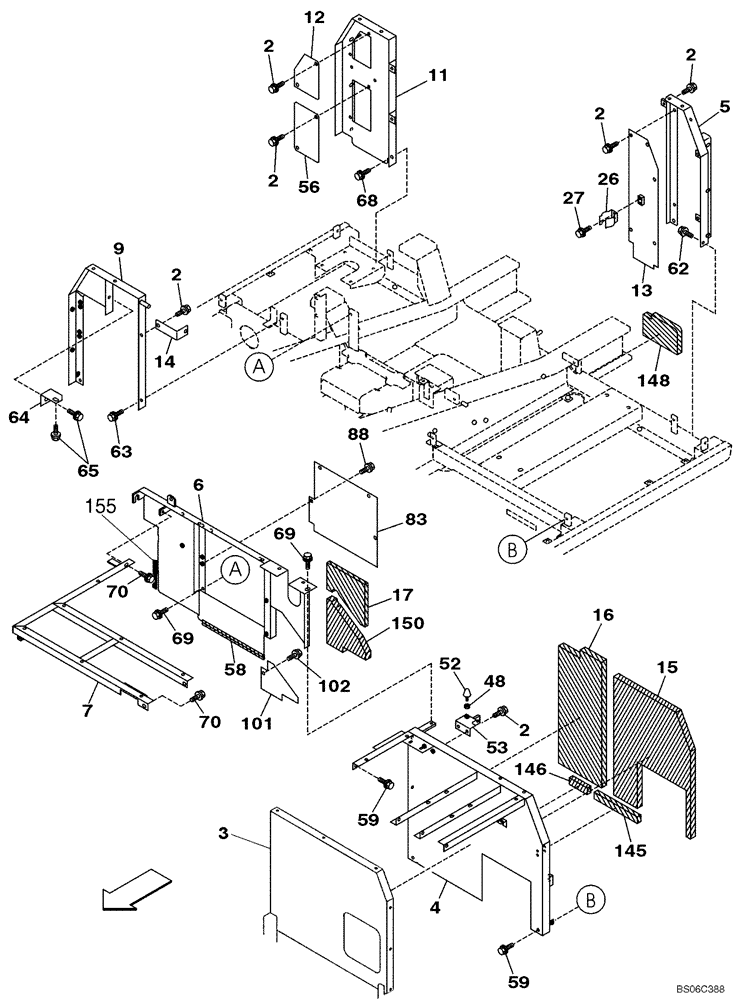

Запчасти Case CX240 (09-05) - FRAMES, COVERS - INSULATION (P.I.N. DAC0724099 - DAC0724170) (09) - CHASSIS

UPPER STRUCTURE

1шт.

2

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

1шт.

3

KRJ7117

SIDE PANEL

1шт.

4

KRN2373

FRAME

1шт.

5

KBN1046

FRAME

1шт.

6

KRN2391

FRAME

1шт.

7

KRN2367

FRAME

1шт.

9

KRN11270

FRAME

Replaces KRN2436

1шт.

11

KBN1047

FRAME

1шт.

12

KRN2307

COVER

1шт.

13

KRN2375

COVER

1шт.

14

KRN2256

BRACKET

1шт.

15

KRN2381

FOAM INSULATION

1шт.

16

KRN2382

FOAM INSULATION

1шт.

17

KRN2383

FOAM INSULATION

1шт.

26

152772A1

HOLDER

Grease Gun

1шт.

27

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

2шт.

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

2шт.

49

KBN1065

BRACKET

1шт.

50

KRN2308

COVER

1шт.

51

HKH0047

GASKET

1шт.

52

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

6шт.

55

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

56

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

57

KNN1346

BRACKET

1шт.

58

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

61

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

3шт.

62

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

3шт.

63

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

78

KRN2376

COVER

1шт.

83

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

3шт.

96

KRN2402

COVER

1шт.

97

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

1шт.

144

KRN2386

FOAM INSULATION

1шт.

145

KRN2387

FOAM INSULATION

1шт.

147

KBN1036

FOAM INSULATION

1шт.

149

KRN2384

FOAM INSULATION

1шт.

154

KNH0729

SOFT TRIM

1шт.
