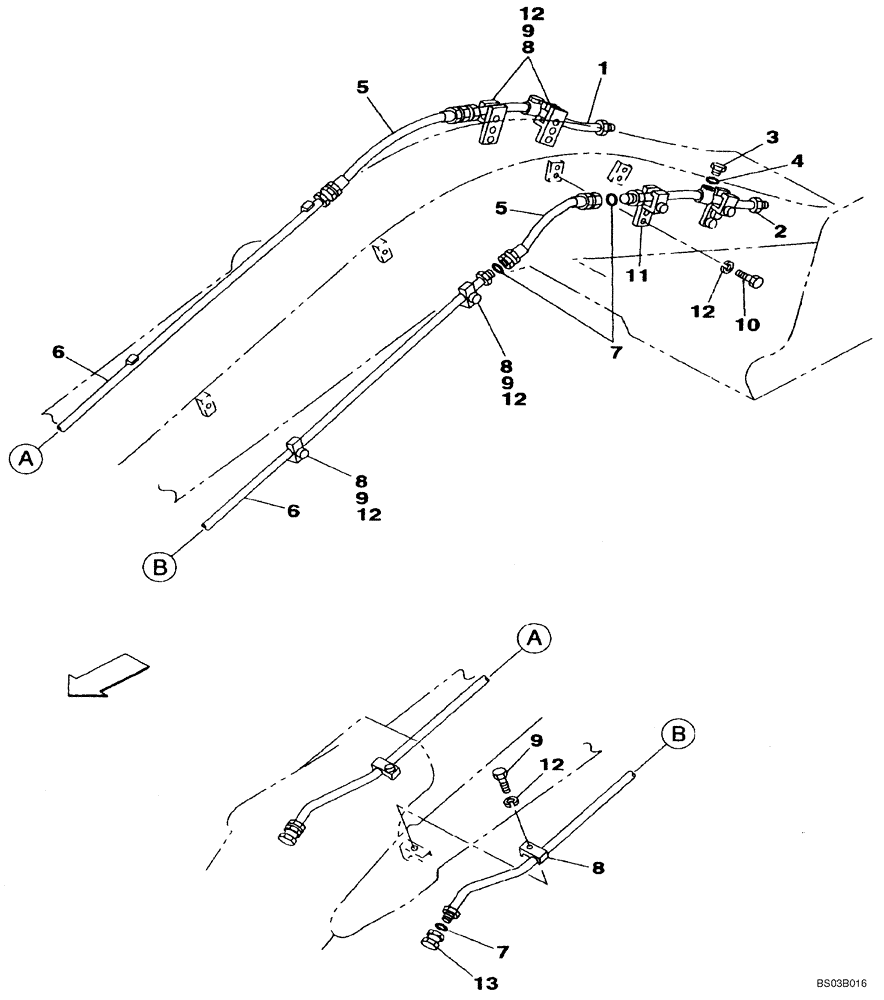

Запчасти Case CX240 (08-63B) - HYDRAULICS, AUXILIARY ATTACHMENT - BOOM LINE (08) - HYDRAULICS

1

KBV1390

HYD TUBE,6 mm ID x 8 mm OD

1шт.

2

KBV1391

HYD TUBE,26 mm ID x 34 mm OD

1шт.

3

152924A1

PLUG

Incl. 4

2шт.

4

154503A1

O-RING

1шт.

5

KRV2495

HYDRAULIC HOSE,25.40 mm ID x 1000.00 mm

2шт.

6

KBV1392

TUBE ASSY.,26 mm ID x 34 mm OD

2шт.

7

KHJ1361

O-RING,0.07" Thk x 0.926" ID

6шт.

8

150777A1

COLLAR

10шт.

9

827-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

10шт.

10

627-16045

BOLT,Hex, M16 x 2 x 45mm, Cl 10.9, Full Thd

8шт.

11

162260A1

BAR

4шт.

12

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

18шт.

13

KHJ1899

PLUG

2шт.
