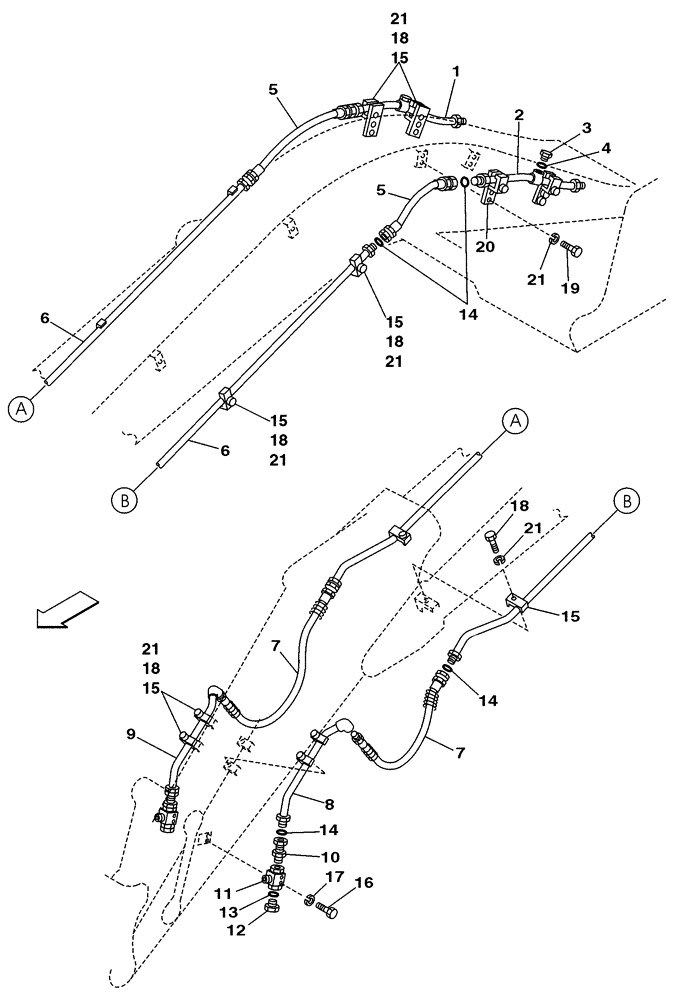

Запчасти Case CX240 (08-63A) - HYDRAULICS, AUXILIARY ATTACHMENT - 2,5 M (7 FT 10 IN) ARM (08) - HYDRAULICS

1

KBV1390

HYD TUBE,6 mm ID x 8 mm OD

1шт.

2

KBV1391

HYD TUBE,26 mm ID x 34 mm OD

1шт.

3

152924A1

PLUG

Incl. 4

2шт.

4

154503A1

O-RING

1шт.

5

KRV2495

HYDRAULIC HOSE,25.40 mm ID x 1000.00 mm

2шт.

6

KBV1392

TUBE ASSY.,26 mm ID x 34 mm OD

2шт.

7

KRV2556

HYDRAULIC HOSE,25.4mm ID x 1700mm L

2шт.

8

KBV1496

TUBE ASSY.,26 mm ID x 34 mm OD

1шт.

9

KBV1495

TUBE ASSY.,26 mm ID x 34 mm OD

1шт.

10

KHV0326

ADAPTER

2шт.

11

KHV10690

VALVE SECTION

Replaces KHV0452

2шт.

12

162659A1

PLUG

Incl. 13

2шт.

13

154523A1

O-RING

1шт.

14

KHJ1361

O-RING,0.07" Thk x 0.926" ID

8шт.

15

150777A1

COLLAR

14шт.

16

827-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

4шт.

17

892-11012

LOCK WASHER,M12

4шт.

18

827-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

14шт.

19

627-16045

BOLT,Hex, M16 x 2 x 45mm, Cl 10.9, Full Thd

8шт.

20

KBV1825

BAR

4шт.

21

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

22шт.
