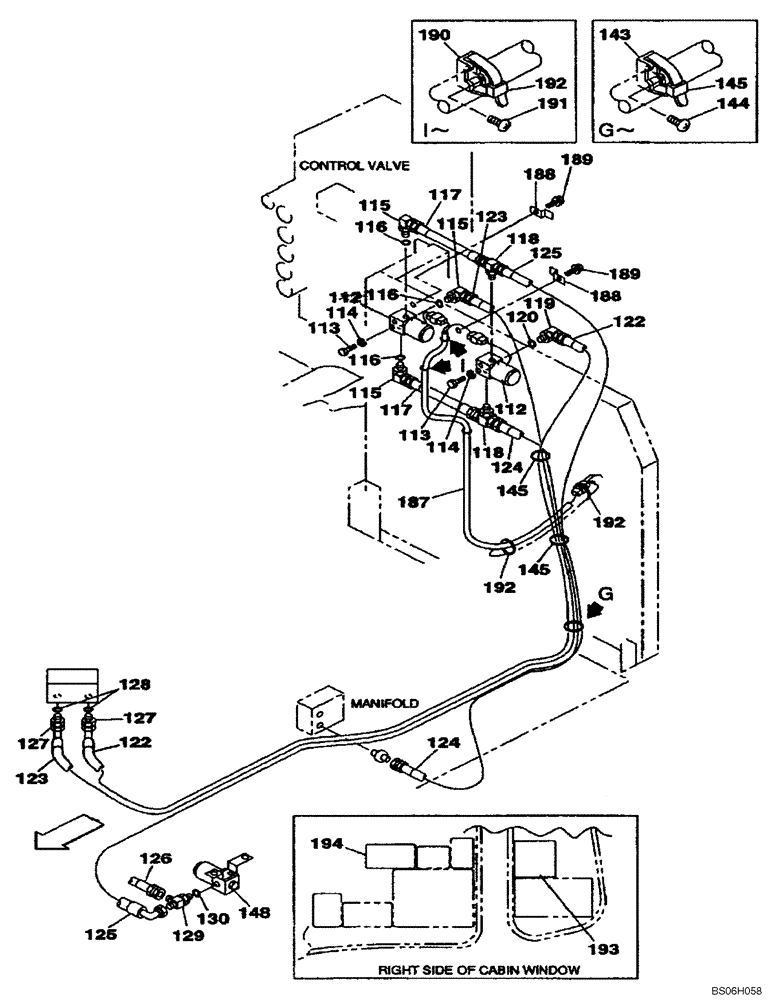

Запчасти Case CX240 (08-61E) - HYDRAULICS, AUXILIARY - DOUBLE ACTING CIRCUIT, HAND OPERATED (08) - HYDRAULICS

112

162538A1

VALVE

See Figure 08-64

2шт.

113

627-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

4шт.

114

892-11006

LOCK WASHER,M6

4шт.

115

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 116

3шт.

116

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

117

MPJ2264

HOSE ASSY.,6.30 mm ID x 230.00 mm

2шт.

118

167321A1

TEE

2шт.

119

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 120

1шт.

120

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

122

159009A1

HOSE ASSY.

1шт.

123

162193A1

HOSE ASSY.

1шт.

124

153484A1

HOSE ASSY.

1700 mm (67 in)

1шт.

125

167352A1

HOSE,2500.00 mm

1шт.

126

159235A1

HYDRAULIC HOSE

850 mm (KRJ3572)

1шт.

127

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 128

2шт.

128

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

129

159497A1

TEE

Incl. 130

1шт.

130

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

143

150860A1

COLLAR

2шт.

144

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

2шт.

145

150496A1

MOUNTING CLIP

1шт.

148

162538A1

VALVE

See Figure 08-64

1шт.

187

KHR3329

HARNESS

1шт.

188

165405A1

CLIP

2шт.

189

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

2шт.

190

150860A1

COLLAR

2шт.

191

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

2шт.

192

150496A1

MOUNTING CLIP

250 mm (10 in)

2шт.

193

KRP2253

DECAL

1шт.

194

KHP1755

DECAL

1шт.

200

150067A1

MOUNTING CLIP

1шт.
