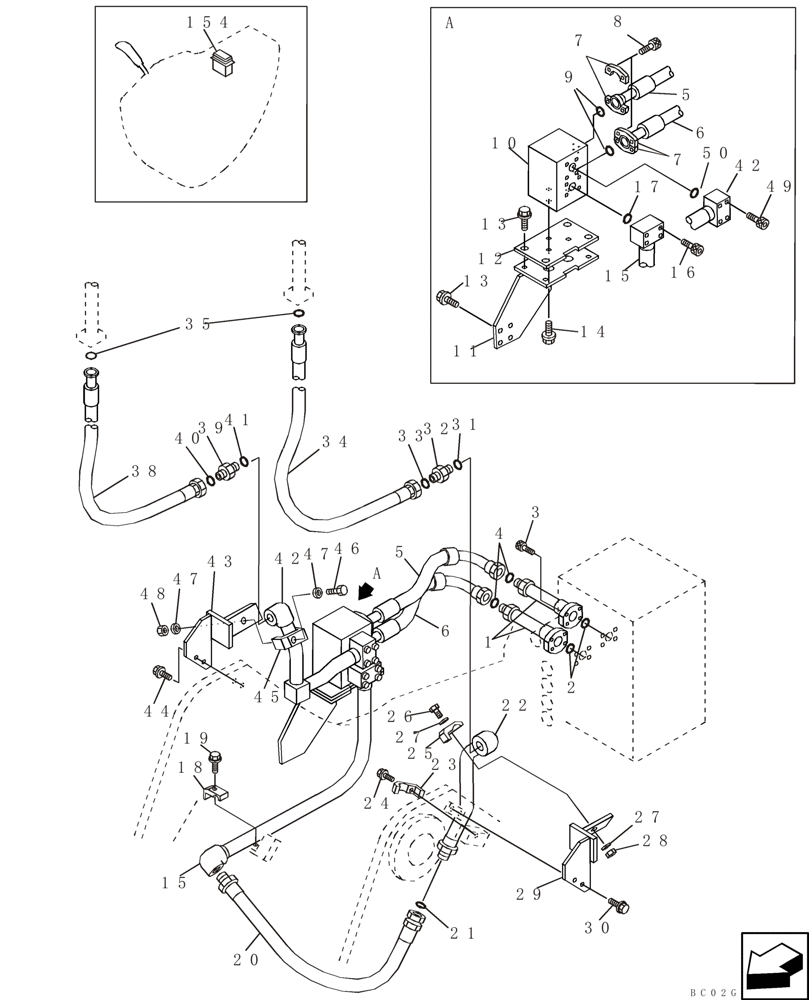

Запчасти Case CX240 (08-58) - HYDRAULICS, AUXILIARY - DOUBLE ACTING CIRCUIT, TRIGGER ACTIVATED (08) - HYDRAULICS

1

KRJ5920

TUBE ASSY.,26 mm ID x 34 mm OD

2шт.

2

154548A1

O-RING

2шт.

3

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

8шт.

4

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.

5

KRJ5726

HOSE

1шт.

6

KRJ5927

HYDRAULIC HOSE,25.40 mm ID x 575.00 mm

1шт.

7

153459A1

FLANGE

4шт.

8

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

8шт.

9

155211A1

O-RING

2шт.

10

KHJ1857

MANIFOLD

1шт.

11

KRJ6171

BRACKET

1шт.

12

KRJ6172

BRACKET

1шт.

13

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

8шт.

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

8шт.

14

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

3шт.

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

3шт.

15

KRJ6173

TUBE ASSY.,26 mm ID x 34 mm OD

1шт.

16

862-10065

HEX SOC SCREW,M10 x 65mm, Cl 12.9

4шт.

17

154548A1

O-RING

1шт.

18

152974A1

COLLAR

1шт.

19

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

1шт.

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

20

KRJ5929

HYDRAULIC HOSE,25.40 mm ID x 1010.00 mm

1шт.

21

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

22

KRJ6174

TUBE ASSY.,26 mm ID x 34 mm OD

1шт.

23

152974A1

COLLAR

1шт.

24

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

1шт.

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

25

150777A1

COLLAR

1шт.

26

827-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 10.9

1шт.

27

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

2шт.

28

829-1416

NUT,M16, Cl 10

1шт.

29

KRJ6314

BRACKET

1шт.

30

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

31

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

32

KHJ1349

ADAPTER

Incl. 33

1шт.

33

154523A1

O-RING

1шт.

34

KRJ5930

HYDRAULIC HOSE,25.40 mm ID x 1540.00 mm

1шт.

35

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.

38

KRJ5930

HYDRAULIC HOSE,25.40 mm ID x 1540.00 mm

1шт.

39

KHJ1349

ADAPTER

Incl. 40

1шт.

40

154523A1

O-RING

1шт.

41

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

42

KRJ6176

TUBE ASSY.,26 mm ID x 34 mm OD

1шт.

43

KRJ6313

BRACKET

1шт.

44

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

45

150777A1

COLLAR

1шт.

46

827-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 10.9

1шт.

47

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

2шт.

48

829-1416

NUT,M16, Cl 10

1шт.

49

862-10065

HEX SOC SCREW,M10 x 65mm, Cl 12.9

4шт.

50

154548A1

O-RING

1шт.

154

KHR3129

SWITCH

1шт.
