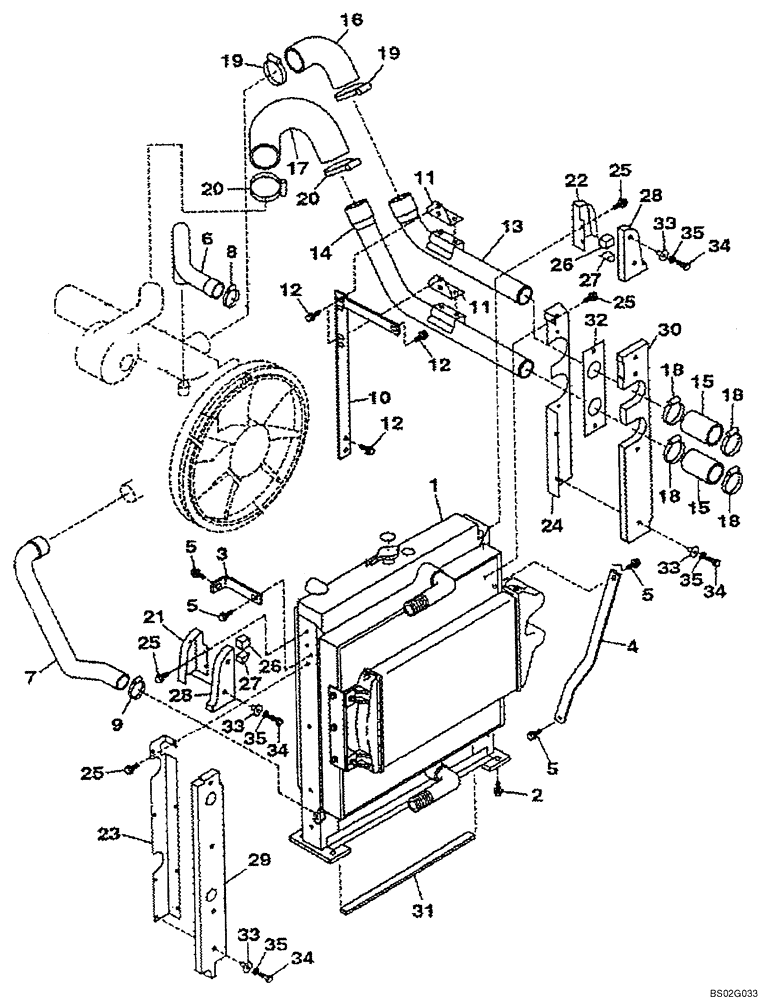

Запчасти Case CX240 (02-04) - RADIATOR AND CONNECTIONS (02) - ENGINE

1

NSS

NOT SOLD SEPARAT

Radiator Assy; Not Serviced As An Assembly; Production Only; See Figure 02 -06

1шт.

2

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

4шт.

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

3

KRH1402

STAY

1шт.

4

KRH1451

STAY

Replaces KRH1403

1шт.

5

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

6

KRH1404

RADIATOR HOSE

1шт.

7

KRH1405

RADIATOR HOSE

1шт.

8

165793A1

COLLAR

2шт.

9

165794A1

COLLAR

2шт.

10

KRH1427

FRAME

1шт.

11

KRH1426

BRACKET

2шт.

12

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

11шт.

13

KRH1424

TUBE

Air-Inlet

1шт.

14

KRH1425

TUBE

Air-Inlet

1шт.

15

KRH1401

RADIATOR HOSE

Air

2шт.

16

KRH1423

AIR HOSE

Air

1шт.

17

KRH1422

AIR HOSE

Air

1шт.

18

164968A1

COLLAR

4шт.

19

KHH0411

COLLAR

2шт.

20

KHH0412

COLLAR

2шт.

21

KRH1411

BRACKET

1шт.

22

KRH1412

BRACKET

1шт.

23

KRH1413

BRACKET

1шт.

24

KRH1414

BRACKET

1шт.

25

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

11шт.

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

11шт.

26

KRH1275

SEAL

2шт.

27

KRH1276

SEAL

2шт.

28

KRH1407

FOAM INSULATION

2шт.

29

KRH1408

FOAM INSULATION

1шт.

30

KRH1409

FOAM INSULATION

1шт.

31

KRH1337

SEAL

1шт.

32

KRH1410

INSULATOR BLOCK

RUBBER BLOCK

1шт.

33

KHH0358

RETAINER

12шт.

34

827-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

12шт.

35

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

12шт.
