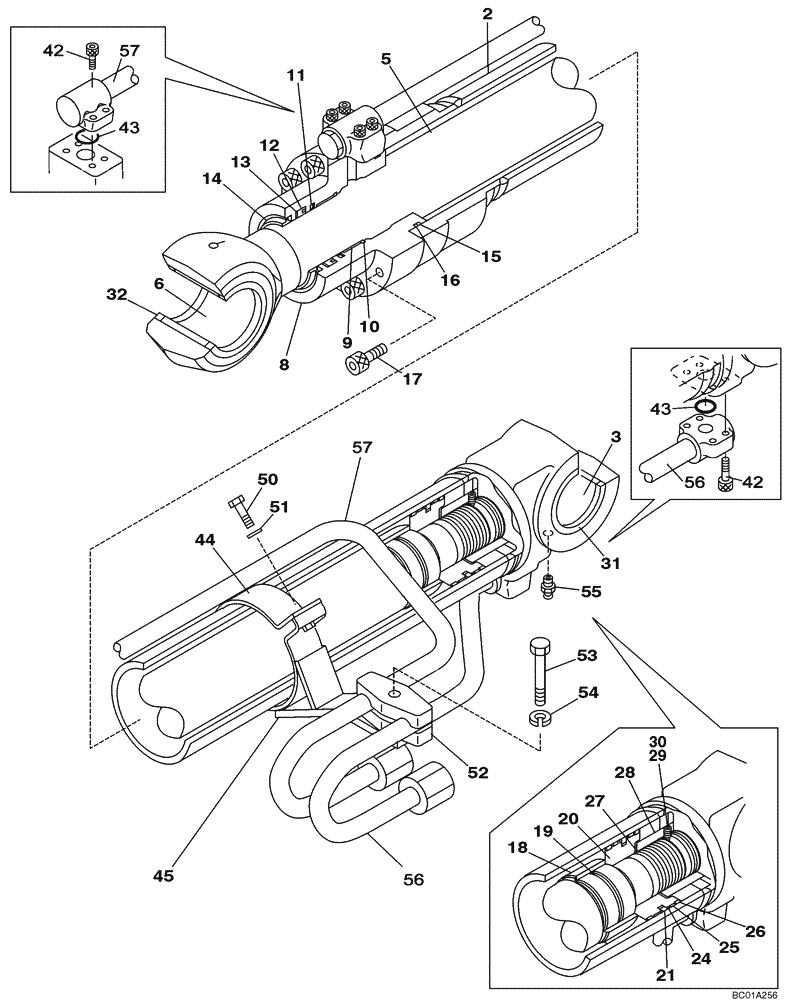

Запчасти Case CX240 (08-46C) - BOOM CYLINDER - RIGHT - WITHOUT VALVE, PRESSURE RELIEF (08) - HYDRAULICS

KRV3234

HYDRAULIC CYLINDER

1шт.

Consists Of Ref. Numbers 2 To 55

1шт.

LR00651

HYD CYL SLEEVE

1шт.

KRV3084

CYLINDER ASSY.

Boom Right Hand

1шт.

Consists Of Ref Numbers 2 To 47

1шт.

LR00651

HYD CYL SLEEVE

1шт.

Consists Of Ref. Numbers 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Tube, Cylinder

1шт.

3

160532A1

BUSHING

1шт.

LB00583

PISTON ROD

1шт.

Consists Of Ref. Numbers 5, 6

1шт.

5

NSS

NOT SOLD SEPARAT

Rod, Piston

1шт.

6

160533A1

BUSHING

1шт.

8

LU00106

CYLINDER END CAP

1шт.

9

155419A1

BUSHING

1шт.

10

155697A1

RING, SNAP

RING SNAP

1шт.

11

LE00764

SCRAPER RING

1шт.

12

155131A1

RING

1шт.

13

155232A1

BACK-UP RING

1шт.

14

158147A1

WIPER SEAL

1шт.

15

154753A1

O-RING,114.4mm ID x 3.1mm Width

1шт.

16

155234A1

BACK-UP RING

1шт.

17

161059A1

BOLT,Hex Skt, M16 x 70mm, Cl 12.9

12шт.

18

158845A1

RING

1шт.

19

LE00704

SEAL

1шт.

20

160217A1

JACK PISTON

1шт.

21

155313A1

SEALING RING

1шт.

24

LE00705

BACK-UP RING

2шт.

25

LE00706

RING

2шт.

26

155308A1

RING

2шт.

27

155721A1

SHIM

1шт.

28

LA00735

SPECIAL NUT

1шт.

29

156223A1

SET SCREW

1шт.

30

155977A1

BALL

1шт.

31

160483A1

BACK-UP RING

2шт.

32

160484A1

WIPER SEAL

2шт.

42

861-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

8шт.

43

154528A1

O-RING

2шт.

44

156376A1

MOUNTING CLIP

1шт.

45

LD00033

CLAMP BRACKET

1шт.

50

158131A1

BOLT,High Strength, M10 x 1.5 x 35mm, Cl 10.9

2шт.

51

156227A1

WASHER

2шт.

52

155701A1

COLLAR

2шт.

53

153910A1

BOLT,High Strength, Hex, M14 x 80mm

1шт.

54

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

1шт.

55

153630A1

LUBE NIPPLE

1шт.

56

LK00473

TUBE ASSY.

1шт.

57

LK00474

HYD TUBE

1шт.

LZ00445

SEAL KIT

1шт.

Consists Of Ref. Numbers 11 To 16, 19, 21 To 26

1шт.
