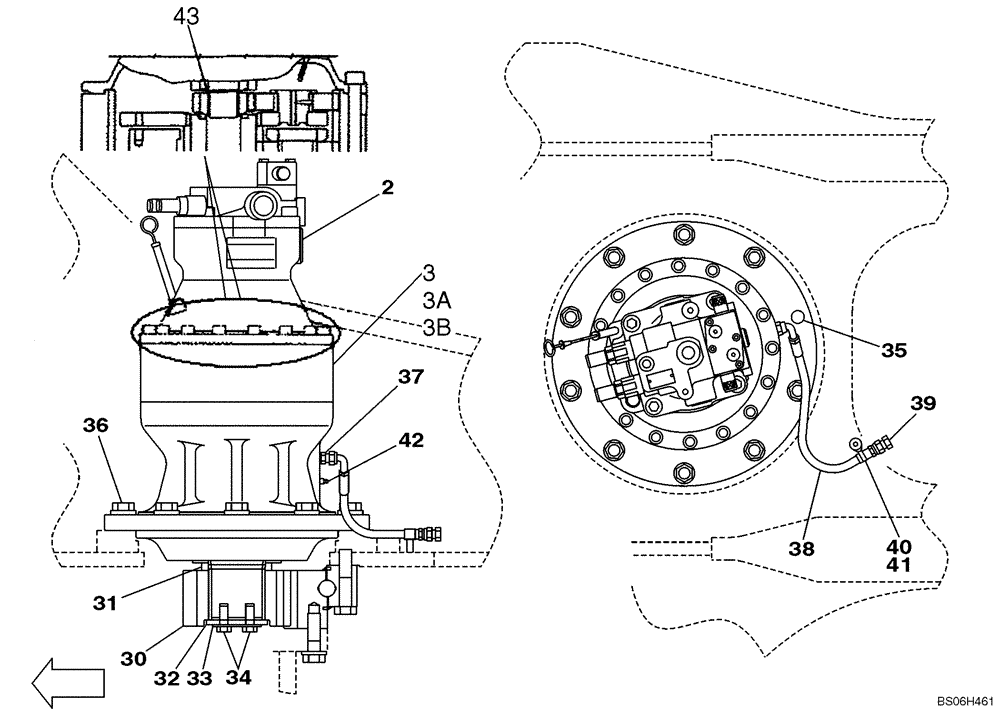

Запчасти Case CX240 (08-35) - MOUNTING - SWING MOTOR (08) - HYDRAULICS

KBC0109

MOTO-REDUCTION GEAR

Swing; Incl. 2, 3; No Longer Available As An Assembly; Order Components

1шт.

2

KBC0108

MOTOR, HYDRAULIC

See Figure 08-36

1шт.

3

KBC0127

REDUCER

Prior to P.I.N. DAC0724272; See Figure 08-38; No Longer Available, For Service Order KBC0157

1шт.

3a

KBC0133

REDUCER

P.I.N. DAC0724272 - DAC0724311; See Figure 08-38A; No Longer Available, For Service Order KBC0157

1шт.

3b

KBC0157

REDUCER

P.I.N. DAC0724312 - ; See Figure 08-38B

1шт.

30

158952A1

PINION

1шт.

31

158953A1

SPACER

1шт.

32

158954A1

PLATE, LOCKING

1шт.

33

150002A1

LOCKING PLATE

1шт.

34

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

2шт.

35

158955A1

HEADED PIN

1шт.

36

827-24080

BOLT,Hex, M24 x 3 x 80mm, Cl 10.9

9шт.

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

9шт.

37

153597A1

ADAPTER

1шт.

38

KHJ1193

HYDRAULIC HOSE,9.52 mm ID x 450.00 mm

1шт.

39

KHP0501

PLUG

1шт.

40

KHR2583

CLAMP

1шт.

41

159602A1

BOLT,Sems, Hex, M6 x 16mm

1шт.

42

153630A1

LUBE NIPPLE

1шт.

43

800-1140

SNAP RING,M40, Ext

1шт.
