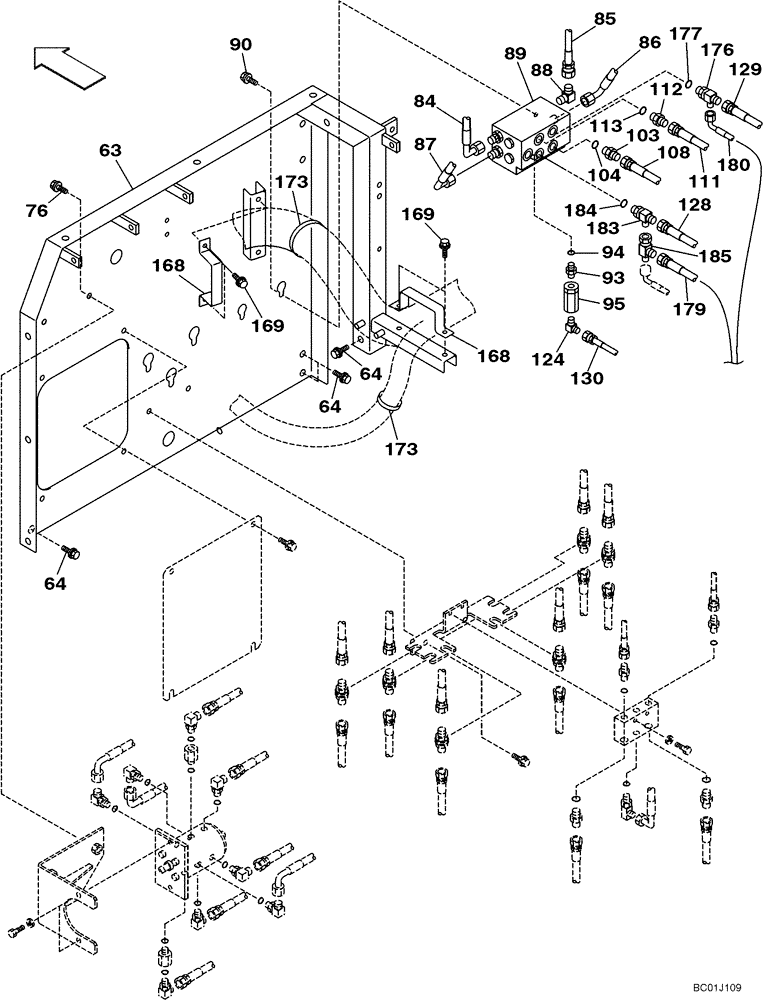

Запчасти Case CX240 (08-21D) - HYDRAULICS - PILOT CONTROL LINES, PARTITION (08) - HYDRAULICS

MODELS WITH LOAD HOLD AND ALTERNATE JOYSTICK CONTROL PATTERN

1шт.

63

KRJ7117

SIDE PANEL

Replaces KRJ6275

1шт.

64

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

76

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

84

KBJ2349

HOSE

See Figure 08-21C

1шт.

85

159224A1

HOSE ASSY.

See Figure 08-21C

1шт.

86

162565A1

HOSE ASSY.

See Figure 08-21C

1шт.

87

KRJ3893

HOSE

See Figure 08-21C

1шт.

88

153526A1

ELBOW

1шт.

89

KRJ6501

VALVE, CUSHION

See Figure 08-43

1шт.

90

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

93

152899A1

HYD CONNECTOR

Incl. 94

1шт.

94

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

95

151552A1

FILTER

1шт.

103

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 104

1шт.

104

154475A1

O-RING

1шт.

108

162565A1

HOSE ASSY.

1000 mm (39-3/8 in); See Figure 08-25C

1шт.

111

159224A1

HOSE ASSY.

900 mm (35-1/2 in); See Figure 08-25C

1шт.

112

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 113

1шт.

113

154475A1

O-RING

1шт.

124

153596A1

ADAPTER

1шт.

128

161492A1

HOSE

See Figure 08-25C

1шт.

129

KHJ1606

HYDRAULIC HOSE

See Figure 08-25C

1шт.

130

162648A1

HOSE

See Figure 08-25C

1шт.

168

159036A1

CLAMP

2шт.

169

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

4шт.

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

1шт.

173

150071A1

MOUNTING CLIP

2шт.

176

164107A1

TEE,3/8" ORB x 3/8" - 19 NPT x 3/8" - 19 NPT

Incl. 177

1шт.

177

154475A1

O-RING

1шт.

179

KHJ1345

HYDRAULIC HOSE,9.52 mm ID x 2150.00 mm

See Figure 08-15A, REF 162

1шт.

180

KHJ1573

HYDRAULIC HOSE,9.52 mm ID x 2200.00 mm

See Figure 08-15A, REF 163

1шт.

183

164107A1

TEE,3/8" ORB x 3/8" - 19 NPT x 3/8" - 19 NPT

Incl. 184

1шт.

184

154475A1

O-RING

1шт.

185

KHJ1897

TEE

1шт.
