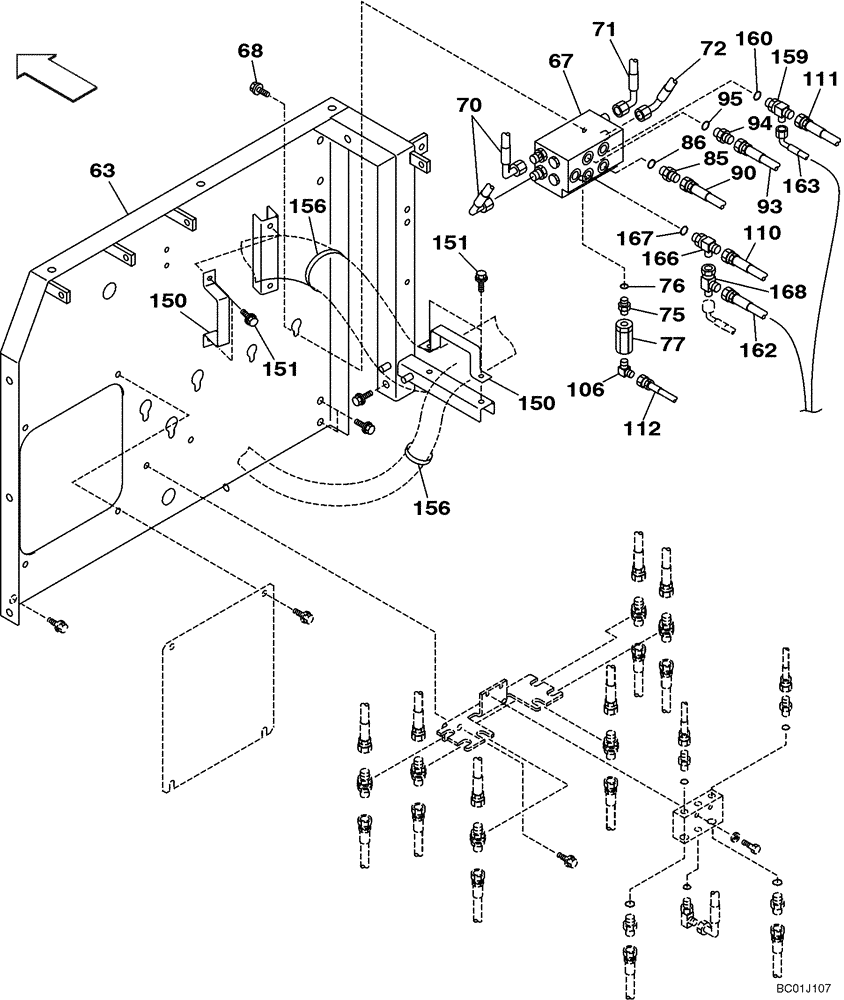

Запчасти Case CX240 (08-21B) - HYDRAULICS - PILOT CONTROL LINES, PARTITION (08) - HYDRAULICS

MODELS WITH LOAD HOLD

1шт.

63

KRJ7117

SIDE PANEL

Replaces KRJ6275

1шт.

67

KRJ6501

VALVE, CUSHION

See Figure 08-43

1шт.

68

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

1шт.

70

162835A1

HOSE ASSY.

See Figure 08-21A

2шт.

71

KRJ3932

HOSE

See Figure 08-21A

1шт.

72

KRJ3569

HOSE

See Figure 08-21A

1шт.

75

152899A1

HYD CONNECTOR

Incl. 76

1шт.

76

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

77

151552A1

FILTER

1шт.

85

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 86

1шт.

86

154475A1

O-RING

1шт.

90

162565A1

HOSE ASSY.

1000 mm (39-3/8 in); See Figure 08-25A

1шт.

93

159224A1

HOSE ASSY.

900 mm (35-1/2 in); See Figure 08-25A

1шт.

94

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 95

1шт.

95

154475A1

O-RING

1шт.

106

153596A1

ADAPTER

1шт.

110

161492A1

HOSE

See Figure 08-25A

1шт.

111

KHJ1606

HYDRAULIC HOSE

See Figure 08-25A

1шт.

112

162648A1

HOSE

See Figure 08-25A

1шт.

150

159036A1

CLAMP

2шт.

151

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

4шт.

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

1шт.

156

150071A1

MOUNTING CLIP

2шт.

159

164107A1

TEE,3/8" ORB x 3/8" - 19 NPT x 3/8" - 19 NPT

Incl. 160

1шт.

160

154475A1

O-RING

1шт.

162

KHJ1345

HYDRAULIC HOSE,9.52 mm ID x 2150.00 mm

See Figure 08-15A

1шт.

163

KHJ1573

HYDRAULIC HOSE,9.52 mm ID x 2200.00 mm

See Figure 08-15A

1шт.

166

164107A1

TEE,3/8" ORB x 3/8" - 19 NPT x 3/8" - 19 NPT

Incl. 167

1шт.

167

154475A1

O-RING

1шт.

168

KHJ1897

TEE

1шт.
