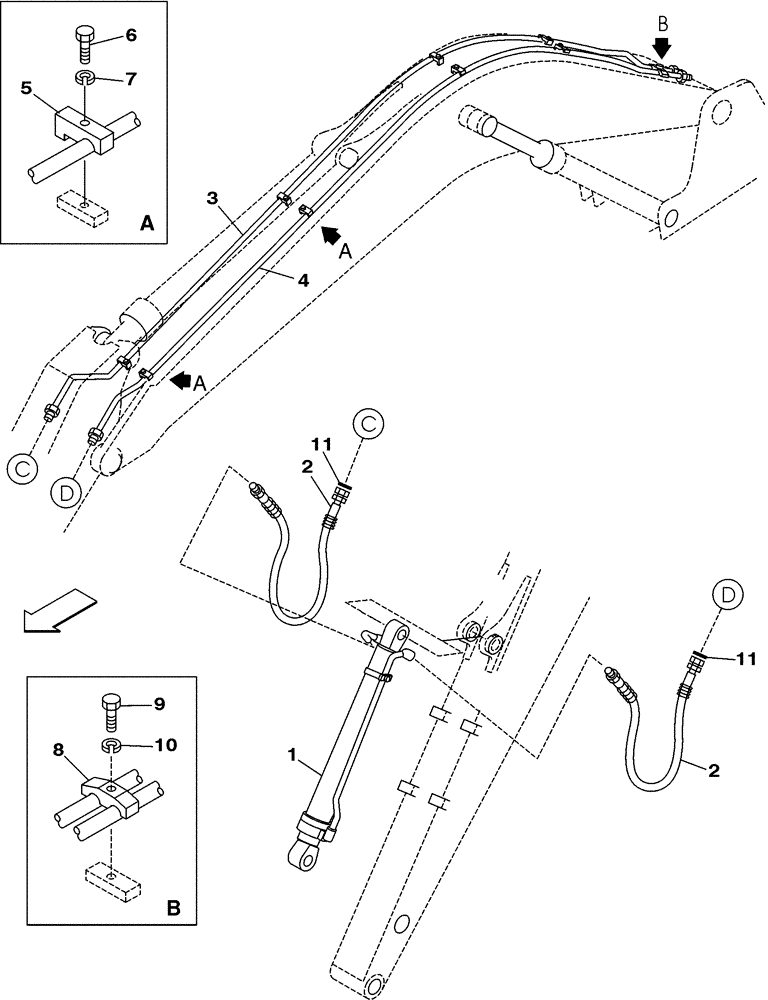

Запчасти Case CX240 (08-13B) - HYDRAULICS - BUCKET, 2,50 M (7 FT 10 IN) ARM (08) - HYDRAULICS

1

KBV1790

BUCKET CYLINDER

Bucket; See Figure 08-49

1шт.

2

KHJ1348

ADAPTER

Incl. 3

2шт.

3

154503A1

O-RING

1шт.

4

KRV2779

HYDRAULIC HOSE,19mm ID x 1300mm L

2шт.

5

KHJ1360

O-RING,0.07" Thk x 0.739" ID

4шт.

6

KBV1349

HYD TUBE,20.8 mm ID x 27.2 mm OD

1шт.

7

KBV1350

HYD TUBE,20.8 mm ID x 27.2 mm OD

1шт.

8

151486A1

CLAMP BRACKET

4шт.

9

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

1шт.

10

892-11012

LOCK WASHER,M12

1шт.

11

159742A1

COLLAR

1шт.
