(06-08) - HYDRAULICS - TRACK DRIVE - WITH DOZER BLADE - HBCV

Запчасти Case CX225SR (06-08) - HYDRAULICS - TRACK DRIVE - WITH DOZER BLADE - HBCV (06) - POWER TRAIN

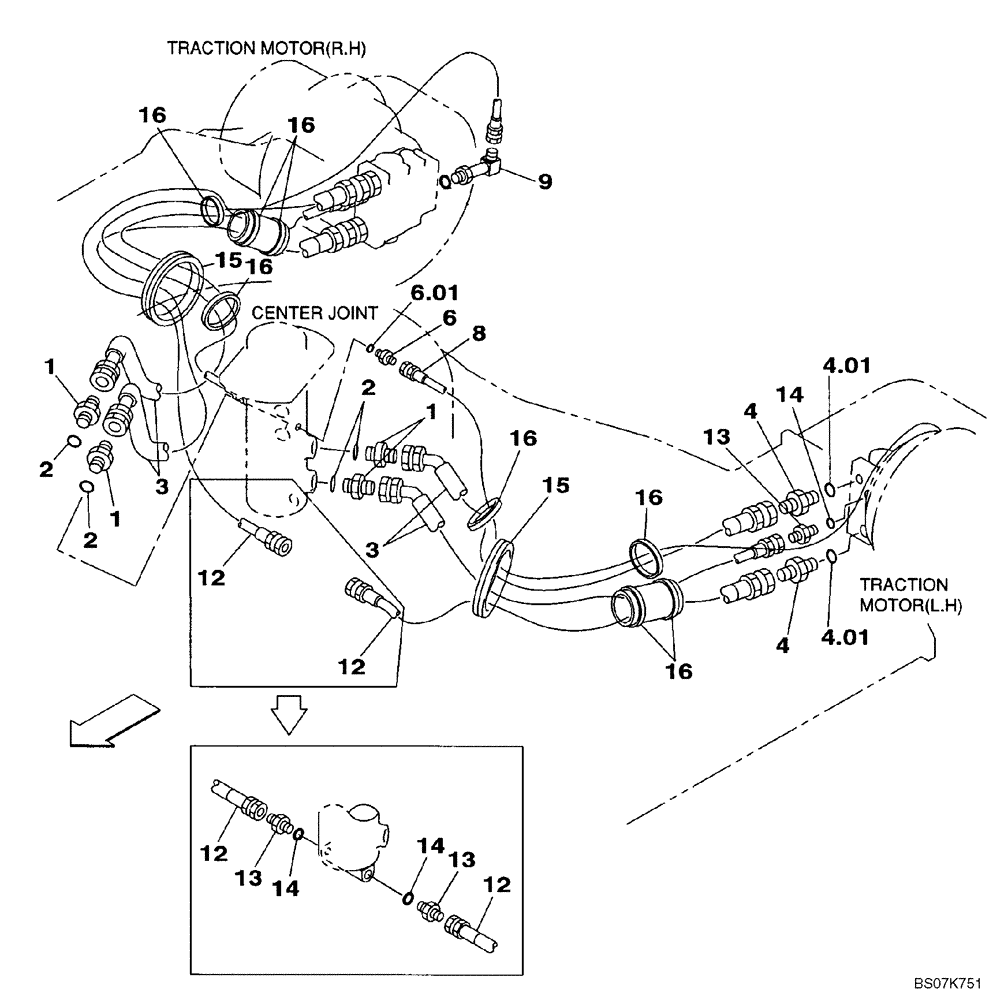

Схема запчастей Case CX225SR - (06-08) - HYDRAULICS - TRACK DRIVE - WITH DOZER BLADE - HBCV (06) - POWER TRAIN
12
16
16
2
16
8
4
15
14
3
16
1
12
3
6.01
2
14
16
6
13
12
2
15
3
4.01
1
4.01
1
13
9
16
13
14
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

Incl. 2

4шт.

2

154503A1

O-RING

4шт.

3

KRA1416

HYDRAULIC HOSE

4шт.

4

169040A1

ADAPTER

Incl. 5

4шт.

4.01

154523A1

O-RING

4шт.

6

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 7

2шт.

6.01

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

8

151895A1

HOSE,2450.00 mm

2шт.

9

KHJ1178

ELBOW

2шт.

12

165933A1

HYDRAULIC HOSE,12.70 mm ID x 1960.00 mm

2шт.

13

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

Incl. 12

4шт.

14

154487A1

O-RING

4шт.

15

160414A1

RUBBER BLOCK

2шт.

16

150071A1

MOUNTING CLIP

4шт.
