Запчасти Case CX225SR (06-02) - MOTOR ASSY - GEAR ASSY, REDUCTION (06) - POWER TRAIN

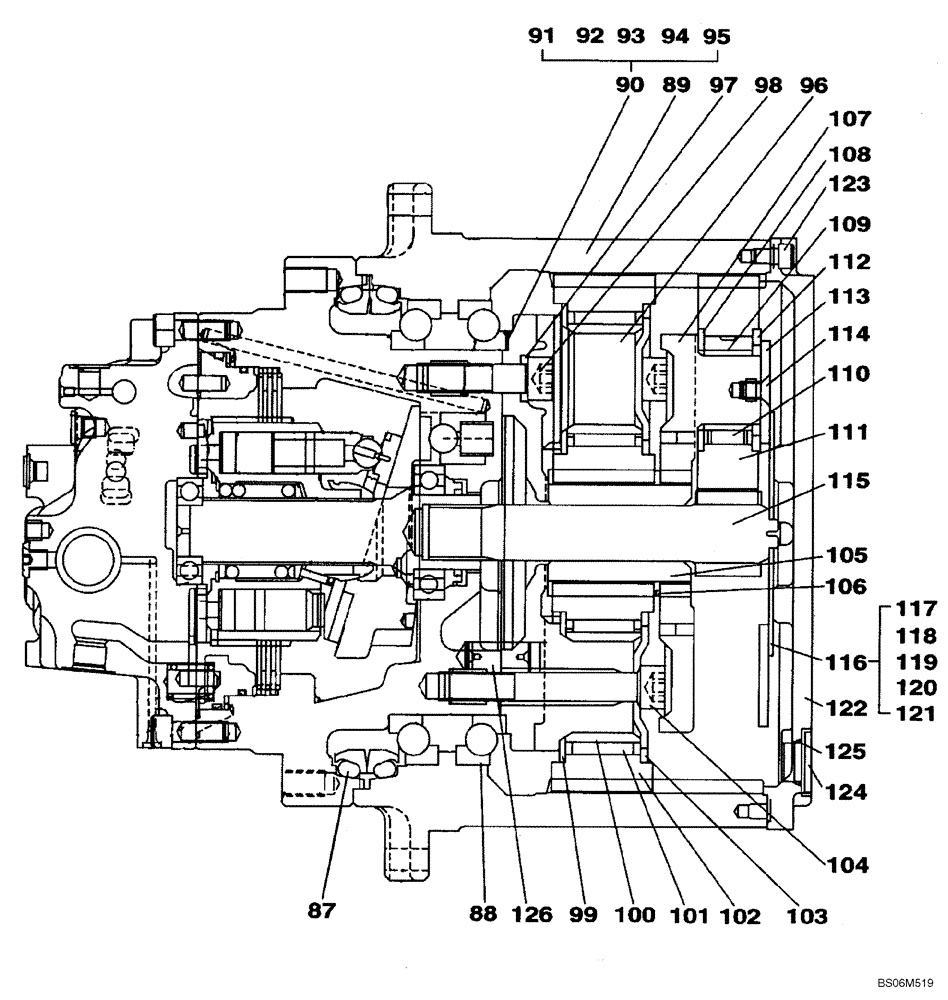

Схема запчастей Case CX225SR - (06-02) - MOTOR ASSY - GEAR ASSY, REDUCTION (06) - POWER TRAIN
121
115
102
108
119
92
97
94
93
104
107
88
105
95
89
118
91
90
103
117
99
124
112
125
126
111
98
101
87
120
122
116
123
113
109
100
96
110
114
106

Артикул

Название

Примечание

Количество

KRA10150

MOTO-REDUCTION GEAR

Includes All Parts On Figures 06-02 - 06-04

1шт.

KRA15440R

REMAN-MOTO REDUCTION

Reman For New P/N KRA10150

1шт.

KRA15440C

CORE-MOTO-REDUCTION UNIT

Return Number

1шт.

KRA12910

HYDRAULIC MOTOR

Includes All Parts On Figures 06-02 - 06-04

1шт.

1

NSS

NOT SOLD SEPARAT

Motor, Piston; Incl. 87 - 131, Also Includes Parts on Figure 06-03

1шт.

87

LE01126

SEAL

2шт.

88

LB00548

BEARING

2шт.

89

NSS

NOT SOLD SEPARAT

Housing

1шт.

90

LH00254

SHIM KIT

Incl. 91 - 95

1шт.

91

NSS

NOT SOLD SEPARAT

Shim, 0.05 mm

1шт.

92

NSS

NOT SOLD SEPARAT

Shim, 0.1 mm

1шт.

93

NSS

NOT SOLD SEPARAT

Shim, 0.3 mm

1шт.

94

NSS

NOT SOLD SEPARAT

Shim, 0.5 mm

1шт.

95

NSS

NOT SOLD SEPARAT

Shim, 1.0 mm

1шт.

96

LS003340

SUPPORT

1шт.

97

LA00702

WASHER

8шт.

98

LA00703

BOLT

8шт.

99

LR00583

PLATE

4шт.

100

LB00549

RING RACE

4шт.

101

LB011790

NEEDLE BEARING

4шт.

102

LC00163

SUN GEAR

4шт.

103

LR015040

THRUST PLATE

4шт.

104

LA00704

BOLT

4шт.

105

LC002880

SUN GEAR

1шт.

106

LA00705

RING, SNAP

RING SNAP

1шт.

107

LS003350

SUPPORT

1шт.

108

LR00585

PLATE

3шт.

109

LB011800

BEARING

3шт.

110

LB011810

NEEDLE BEARING

3шт.

111

LC002890

IDLER PINION

3шт.

112

LR00586

PLATE

3шт.

113

LR015050

THRUST PLATE

1шт.

114

LV00029

SCREW

3шт.

115

LC002900

GEAR

1шт.

116

LR00588

DISC

Incl. 117 - 121

1шт.

117

NSS

NOT SOLD SEPARAT

Plate, Thrust; 3.6 mm

1шт.

118

NSS

NOT SOLD SEPARAT

Plate, Thrust; 2.3 mm

1шт.

119

NSS

NOT SOLD SEPARAT

Plate, Thrust; 2.8 mm

1шт.

120

NSS

NOT SOLD SEPARAT

Plate, Thrust; 3.0 mm

1шт.

121

NSS

NOT SOLD SEPARAT

Plate, Thrust; 3.2 mm

1шт.

122

LW005570

COVER

Replaces LW00316

1шт.

123

108R010Z016N

BOLT

16шт.

124

165681A1

PLUG

3шт.

125

154503A1

O-RING

3шт.

126

160104A1

PIN

4шт.

LZ006890

REPAIR KIT

Incl. 87, 125

1шт.

LN001880

REDUCER

Incl. 87 - 126 And Ref 65 On Figure 06-03

1шт.

LN001880R

REMAN-REDUCTION UNIT

CX225SR CRAWLER EXCAVATOR TIER 3, MOTOR ASSY, GEAR ASSY, REDUCTION (3/08-)

1шт.

LN001880C

CORE-REDUCTION UNIT

Return Number

1шт.

Выбрано товаров: 49
