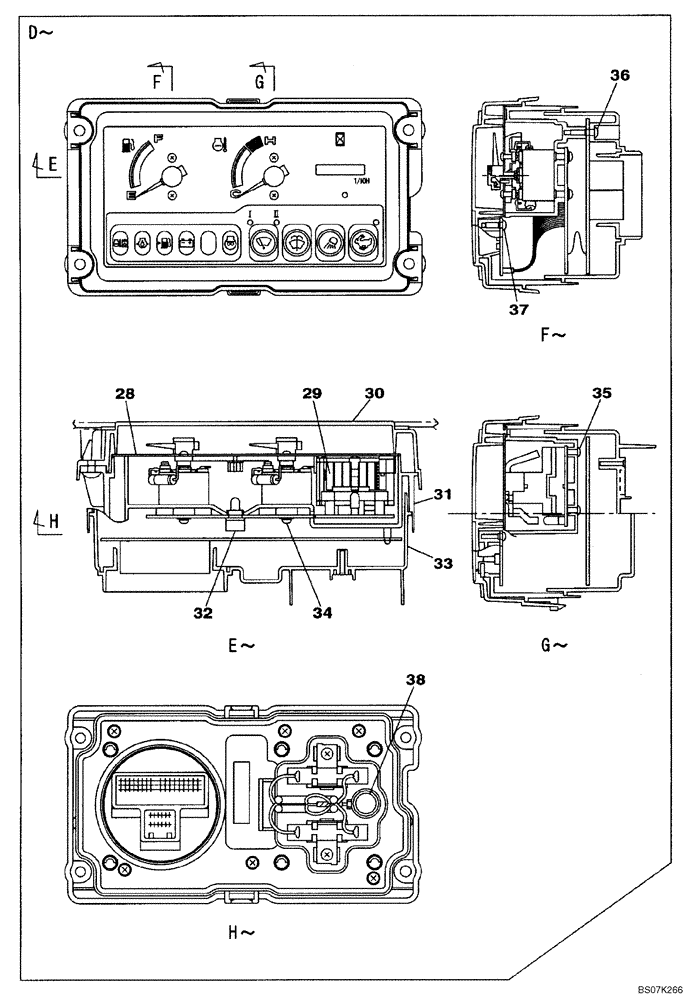

Запчасти Case CX225SR (04-09) - MONITOR ASSY (04) - ELECTRICAL SYSTEMS

KHR4104

INSTRUMENT PANEL

Incl. 28 - 38

1шт.

KHR4104R

REMAN-INSTR CLUSTER

CX225SR CRAWLER EXCAVATOR TIER 3 (3/08-)

1шт.

KHR4104C

CORE-CLUSTER, INSTR

Return Number

1шт.

28

KHR4292

METER

1шт.

29

KHR4264

HOURMETER

1шт.

30

NSS

NOT SOLD SEPARAT

Panel

1шт.

31

KHR4266

CASE ASSY.

1шт.

32

NSS

NOT SOLD SEPARAT

Clamp

1шт.

33

KHR4267

COVER

1шт.

34

KHR4268

SCREW,Pan

M3X27

6шт.

35

KHR3216

SELF-TAP SCREW

M2.6X16

3шт.

36

KHR3341

SELF-TAP SCREW

M3X14

8шт.

37

KHR3213

SELF-TAP SCREW

M3X10

7шт.

38

KHR4271

CAP

1шт.
