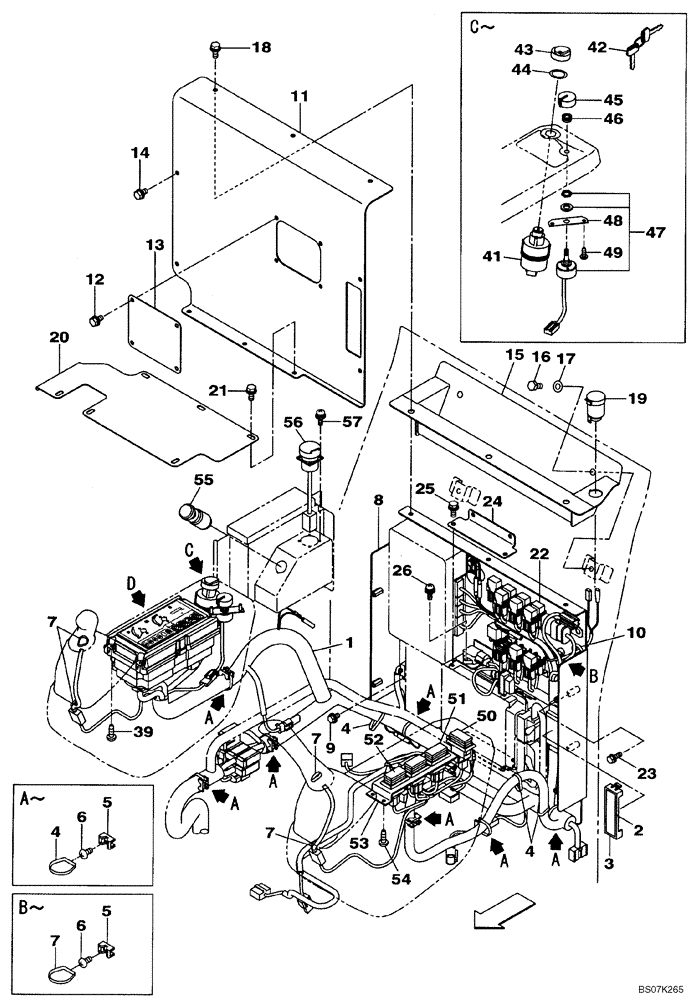

Запчасти Case CX225SR (04-08) - ELECTRICAL - CAB (04) - ELECTRICAL SYSTEMS

1

KHR19890

WIRE HARNESS

HARNESS WIRE

1шт.

2

NSS

NOT SOLD SEPARAT

LABEL

1шт.

3

NSS

NOT SOLD SEPARAT

COVER

1шт.

4

150496A1

MOUNTING CLIP

11шт.

5

150860A1

COLLAR

8шт.

6

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

8шт.

7

150067A1

MOUNTING CLIP

5шт.

8

KHR19360

BRACKET

BRACKET

1шт.

9

166345A1

BOLT

M8X16

4шт.

10

KMR0897

GROMMET

1шт.

11

KHR19370

COVER

COVER

1шт.

12

KHN2131

BOLT

M6X12

4шт.

13

KHR16650

COVER

COVER, TOP

1шт.

14

KHN2131

BOLT

M6X12

4шт.

15

KHR19600

COVER

COVER, TOP

1шт.

16

162571A1

BOLT,High Strength, M8 x 16mm

M8X16

2шт.

17

159500A1

WASHER

2шт.

18

KHN2132

BOLT,Hex Flg Hd, M6 x 16

M6X16

3шт.

19

KHR2501

SOCKET

1шт.

20

KHR16670

COVER

COVER, REAR

1шт.

21

KHN2132

BOLT,Hex Flg Hd, M6 x 16

M6X16

6шт.

22

KHR3802

RELAY

9шт.

23

159906A1

BOLT,Sems, Hex, M6 x 20mm, Spcl

M6X20

2шт.

24

KHR13480

BRACKET

2шт.

25

159602A1

BOLT,Sems, Hex, M6 x 16mm

M6X16

8шт.

26

157538A1

SCREW

M5X16

2шт.

39

KHR3806

SELF-TAP SCREW

M5X20

4шт.

40

KHR20050

IGNITION SWITCH

SWITCH, IGNITION, Incl. 41 - 44, Replaces KHR3270

1шт.

41

KHR3078

IGNITION SWITCH

1шт.

42

KHR20070

IGNITION KEY

KEY CASE, Replaces 150979A1

2шт.

43

KHR3080

CAP

1шт.

44

KHR3081

WASHER

1шт.

45

KHR2750

KNOB

1шт.

46

KHR2741

PACKING

1шт.

47

KHR2751

SWITCH

THROTTLE VOLUME

1шт.

48

KHR3561

BRACKET

1шт.

49

KHR2737

SELF-TAP SCREW

M5X14

2шт.

50

KHR3967

TOGGLE SWITCH

1шт.

51

KHR3886

SWITCH

1шт.

52

KHR3965

TOGGLE SWITCH

1шт.

53

KHR4168

COVER

1шт.

54

KHR2737

SELF-TAP SCREW

M5X14

4шт.

55

KHR2488

LIGHTER, CIGARETTE

1шт.

56

KHR19970

WIRE HARNESS

HARNESS, WIRE

1шт.

57

162061A1

SCREW,Pan Hd, M3 x 8mm

SCREW, M3X8

4шт.
