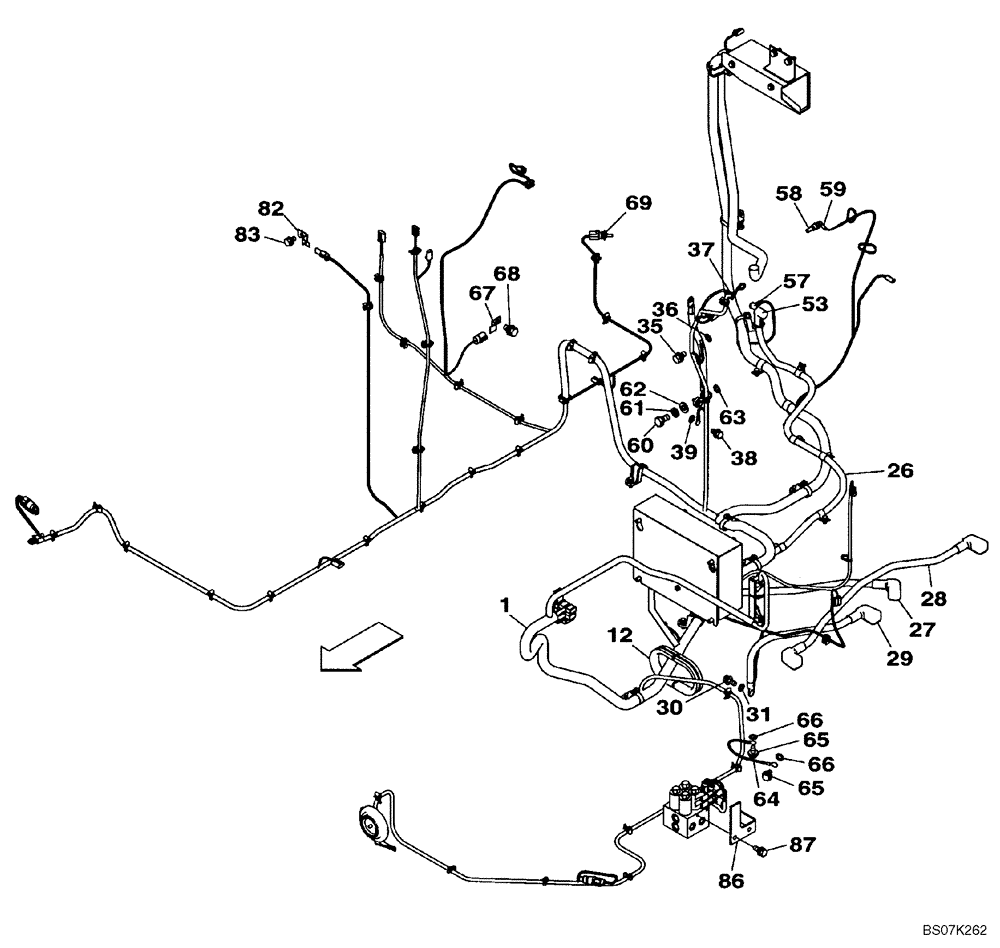

Запчасти Case CX225SR (04-05) - HARNESS, MAIN - CHASSIS, UPPERSTRUCTURE (04) - ELECTRICAL SYSTEMS

1

KRR13891

WIRE HARNESS

Replaces KRR13890

1шт.

1.5

KHR20790

WIRE HARNESS

Not Shown

1шт.

12

166297A1

GROMMET

2шт.

26

KHR16831

ELECTRIC CABLE

CABLE, Battery

1шт.

27

KHR19740

ELECTRIC CABLE

CABLE, Battery

1шт.

28

KHR19520

ELECTRIC CABLE

CABLE, Battery

1шт.

29

KHR12130

ELECTRIC CABLE

1шт.

30

167320A1

BOLT,Spcl, M8 x 20mm

M8X20

1шт.

31

893-11008

LOCK WASHER,Ext Tooth, M8

1шт.

35

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

M6X12

1шт.

36

893-11006

LOCK WASHER,Ext Tooth, M6

1шт.

37

159179A1

PROTECTION CAP

1шт.

38

167518A1

BOLT

M8X16

1шт.

39

893-11008

LOCK WASHER,Ext Tooth, M8

1шт.

53

KHR4114

PROTECTOR

1шт.

57

159179A1

PROTECTION CAP

1шт.

58

167331A1

SENSOR

Water Temperature

1шт.

59

159171A1

CAP

1шт.

60

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

1шт.

61

892-11010

LOCK WASHER,M10

1шт.

62

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

63

893-11010

LOCK WASHER,Ext Tooth, M10

1шт.

64

KAR0564

WIRE HARNESS

1шт.

65

166345A1

BOLT

M8X16

2шт.

66

893-11008

LOCK WASHER,Ext Tooth, M8

2шт.

67

KHR16450

CLIP

1шт.

68

167518A1

BOLT

M8X16

1шт.

69

KHR2433

SENSOR

Hydraulic Oil Temperature

1шт.

82

165405A1

CLIP

1шт.

83

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

Replaces 159602A1

1шт.

86

KHR4219

BRACKET

1шт.

87

159602A1

BOLT,Sems, Hex, M6 x 16mm

M6X16

2шт.

88

150496A1

MOUNTING CLIP

Not Shown

2шт.
