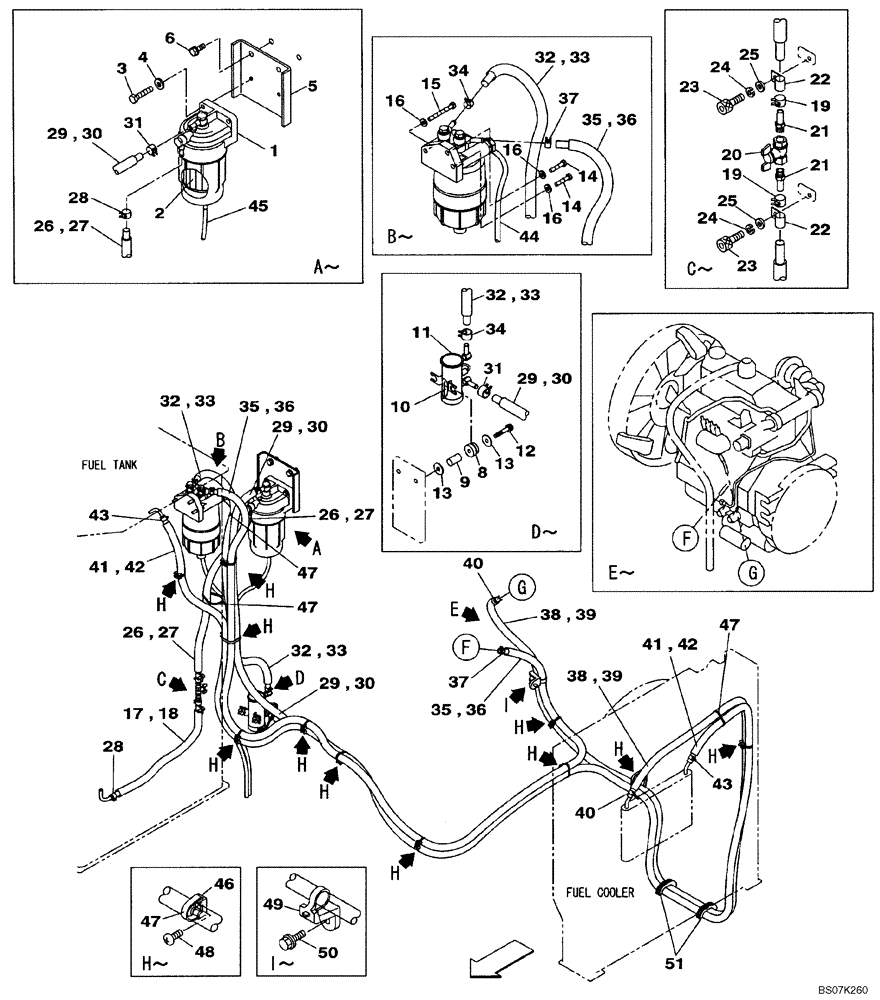

Запчасти Case CX225SR (03-02) - FUEL LINES (03) - FUEL SYSTEM

1

KHH12020

FILTER ASSY

Incl. 1A - 2C, Incl. 1A-3

1шт.

1a

158678A1

GASKET

Not Illustrated

4шт.

1b

158676A1

GASKET

Not Illustrated

1шт.

2

KHH12030

FUEL FILTER

Incl. 2A, 2B

1шт.

2a

LBQ5245

O-RING

Not Illustrated

1шт.

2b

KHH10600

GASKET

Not Illustrated

1шт.

2c

155467A1

PLUG, DRAIN

Not Illustrated

1шт.

3

827-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9

2шт.

4

153081A1

WASHER

2шт.

5

KRH11920

SUPPORT

BRACKET

1шт.

6

166347A1

BOLT,Sems, M10 x 30mm

M10X30

2шт.

7

KHH11880

FEED PUMP

Incl. 8 - 10

1шт.

8

KHH10470

GROMMET

2шт.

9

KHH10480

COLLAR

2шт.

10

KHH11890

FILTER SCREEN

1шт.

11

KHH11900

GASKET

1шт.

12

162056A1

BOLT,Spcl, M6 x 30mm

2шт.

13

150529A1

WASHER

4шт.

14

827-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

2шт.

15

102R008Y075R

BOLT

M8X75

1шт.

16

153081A1

WASHER

3шт.

17

KHH0489

FUEL HOSE,600.00 mm

1шт.

18

KHR13940

PLASTIC-RUBBER TUBE

1шт.

19

KHH0405

MOUNTING CLIP

2шт.

20

158923A1

DRAIN VALVE

1шт.

21

157929A1

FITTING

2шт.

22

162148A1

CLIP

1-2шт.

22

KHR2582

CLAMP

1шт.

23

108R008Y016R

BOLT

M8X16

1-2шт.

23

KHJ1215

BOLT,Spcl

1шт.

24

892-11008

LOCK WASHER,8mm ID

2шт.

25

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

26

KHH11490

FUEL HOSE,9.70 mm ID x 650.00 mm

1шт.

27

150488A1

PLASTIC-RUBBER TUBE

1шт.

28

KHH0405

MOUNTING CLIP

2шт.

29

KHH11660

FUEL HOSE

Rubber

1шт.

30

KHR19790

PLASTIC-RUBBER TUBE

TUBE, Corrugated

1шт.

31

KHH0405

MOUNTING CLIP

2шт.

32

KHH11670

FUEL HOSE

Rubber

1шт.

33

KHR19790

PLASTIC-RUBBER TUBE

TUBE, Corrugated

1шт.

34

KHH0405

MOUNTING CLIP

2шт.

35

KHH0416

FUEL HOSE

1шт.

36

KHR19800

PLASTIC-RUBBER TUBE

TUBE, Corrugated

1шт.

37

KHH0405

MOUNTING CLIP

2шт.

38

KHH12230

FUEL HOSE

Rubber

1шт.

39

KHR19810

PLASTIC-RUBBER TUBE

TUBE, Corrugated

1шт.

40

KHH0405

MOUNTING CLIP

1шт.

41

KHH12220

FUEL HOSE

Rubber

1шт.

42

KHR19820

PLASTIC-RUBBER TUBE

TUBE, Corrugated

1шт.

43

KHH0405

MOUNTING CLIP

2шт.

44

KHH11360

PLASTIC-RUBBER TUBE

TUBE, Vinyl

1шт.

45

KHH11510

PLASTIC-RUBBER TUBE

1шт.

46

150860A1

COLLAR

11шт.

47

150498A1

MOUNTING CLIP

14шт.

48

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

11шт.

49

KHR2581

CLAMP

1шт.

50

KHJ1215

BOLT,Spcl

M8X25

1шт.

51

HEH0026

RUBBER SEAL

2шт.
