(05-15) - UNDERCARRIAGE - MODELS WITH DOZER BLADE

Запчасти Case CX225SR (05-15) - UNDERCARRIAGE - MODELS WITH DOZER BLADE (11) - TRACKS/STEERING

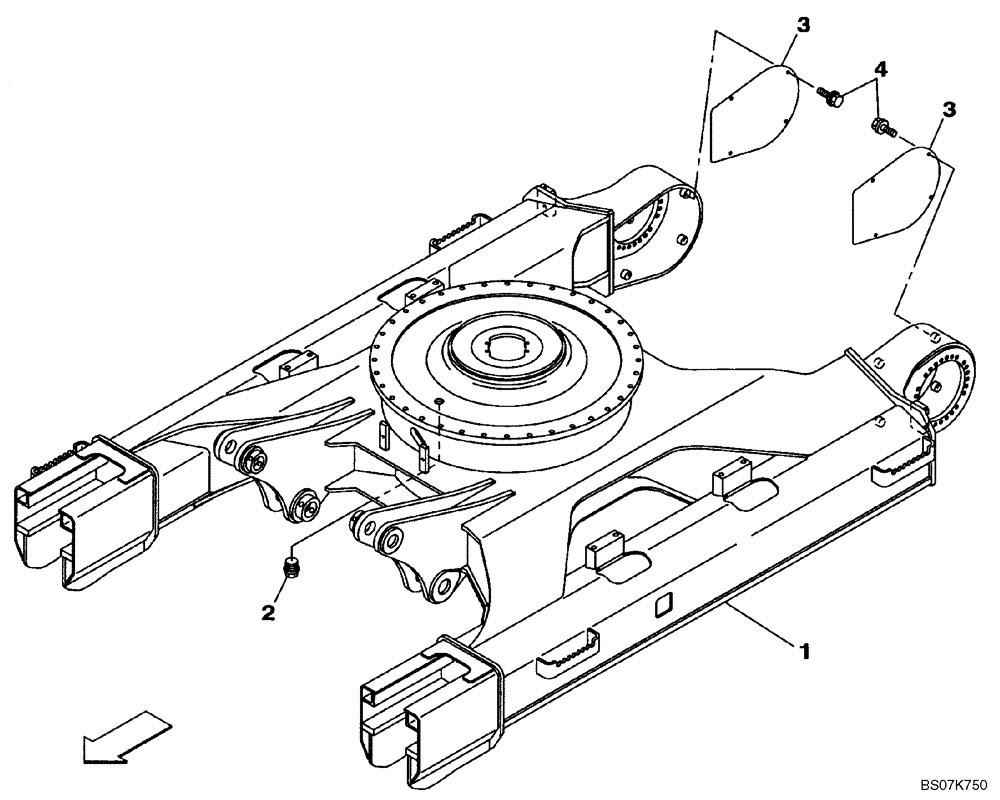

Схема запчастей Case CX225SR - (05-15) - UNDERCARRIAGE - MODELS WITH DOZER BLADE (11) - TRACKS/STEERING
1
2
3
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KRA12320

FRAME

FRAME WITH DOZER BLADE

1шт.

2

157221A1

PLUG

1шт.

3

KRA1553

COVER

Motor

2шт.

4

158919A1

CAPTIVE WASHER SCREW,Hex Wshr Hd, M12 x 1.75 x 35mm, Cl 10.9, Spcl

M12X35

8шт.
