Запчасти Case CX225SR (09-53) - BUCKETS, ESCO - HEAVY DUTY CAST BUCKET (09) - CHASSIS/ATTACHMENTS

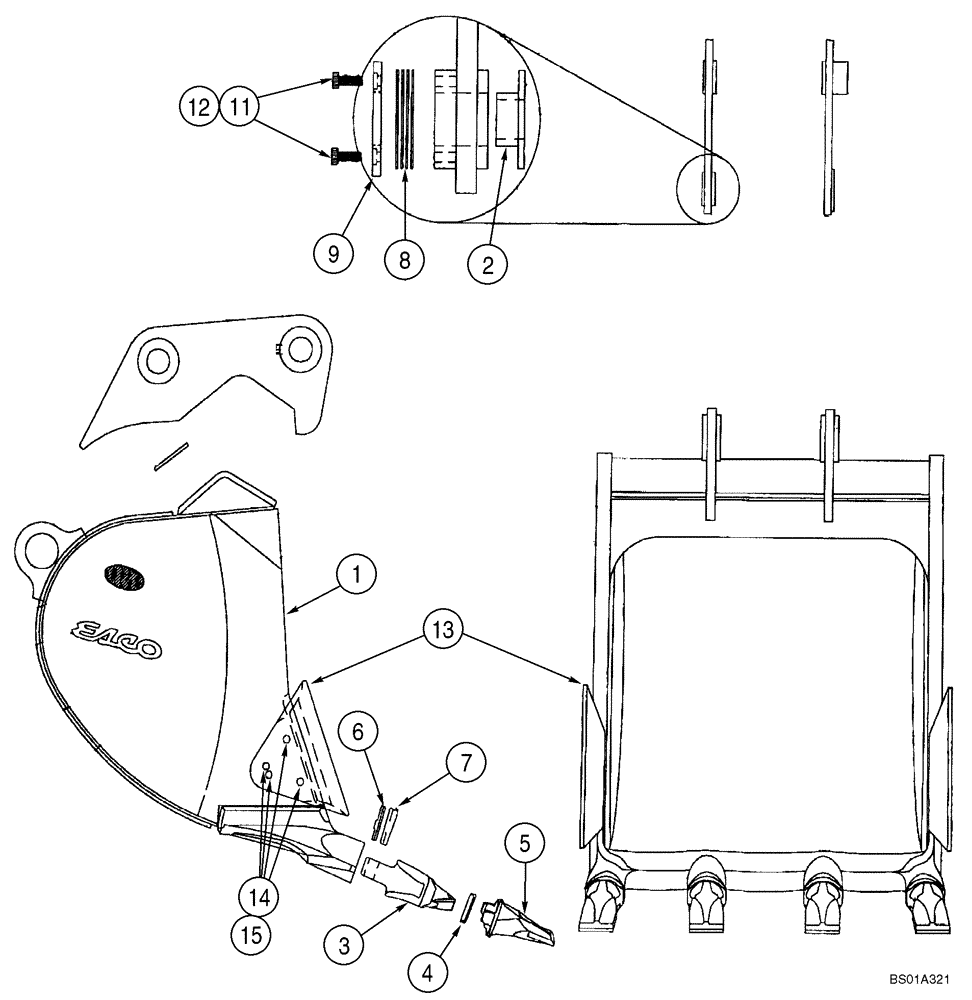

Схема запчастей Case CX225SR - (09-53) - BUCKETS, ESCO - HEAVY DUTY CAST BUCKET (09) - CHASSIS/ATTACHMENTS
5
8
12
14
6
15
13
3
11
1
7
2
9
4

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

Bucket 0,42 cu m (0,55 cu yd); With 3 Teeth

1шт.

1

REF

INSTRUCTION

Bucket, 0,56 cu m (0,74 cu yd); with 4 Teeth

1шт.

2

372027A1

ADAPTER

1шт.

3

372030A1

SHANK, BUCKET TOOTH

Tooth

3-4шт.

4

233799A1

BUCKET TOOTH KEY

3-4шт.

5

233798A1

TOOTH

3-4шт.

6

S107814

SPOOL

Fluted

3-4шт.

7

S107813

WEDGE

Fluted

3-4шт.

8

378630A1

SHIM

6шт.

9

378631A1

PLATE

1шт.

10

378632A1

PIN

Not Illustrated

2шт.

11

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

4шт.

12

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

4шт.

378662A1

KIT

Shroud, Incl. 13 - 15

1шт.

13

244962A1

BLADE

2шт.

14

232-41314

LOCK NUT,7/8"-9, GC

6шт.

15

320-21444

CARRIAGE BOLT,#3, 7/8" - 9 x 2 3/4", Gr 8

6шт.

378642A1

KIT

Adjustment, Incl. 2, 8 - 12

1шт.

Выбрано товаров: 18
