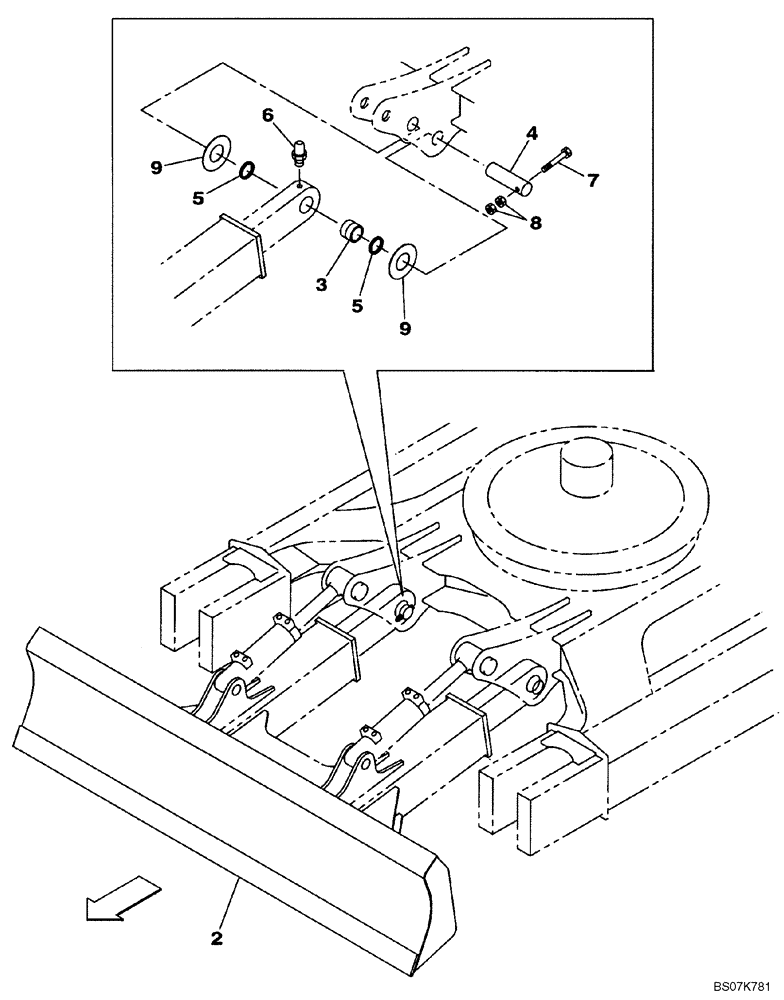

Запчасти Case CX225SR (09-49) - BLADE, DOZER (09) - CHASSIS/ATTACHMENTS

2

KRV15740

BULL BLADE

BLADE

1шт.

3

KRV3314

BUSHING

2шт.

4

160446A1

PIN,75mm OD x 241mm L

2шт.

5

160400A1

SEAL,75mm ID x 90mm OD x 5mm Thk

4шт.

6

153912A1

LUBE NIPPLE,90 Degree, 1/8"-27 NPT x 21.5mm lg

2шт.

7

514-1221

BOLT,Hex, M20 x 1.5 x 160mm, Cl 10.9

2шт.

8

829-11420

NUT,M20 x 1.5, Cl 10

4шт.

9

KRV2507

SHIM

4шт.
