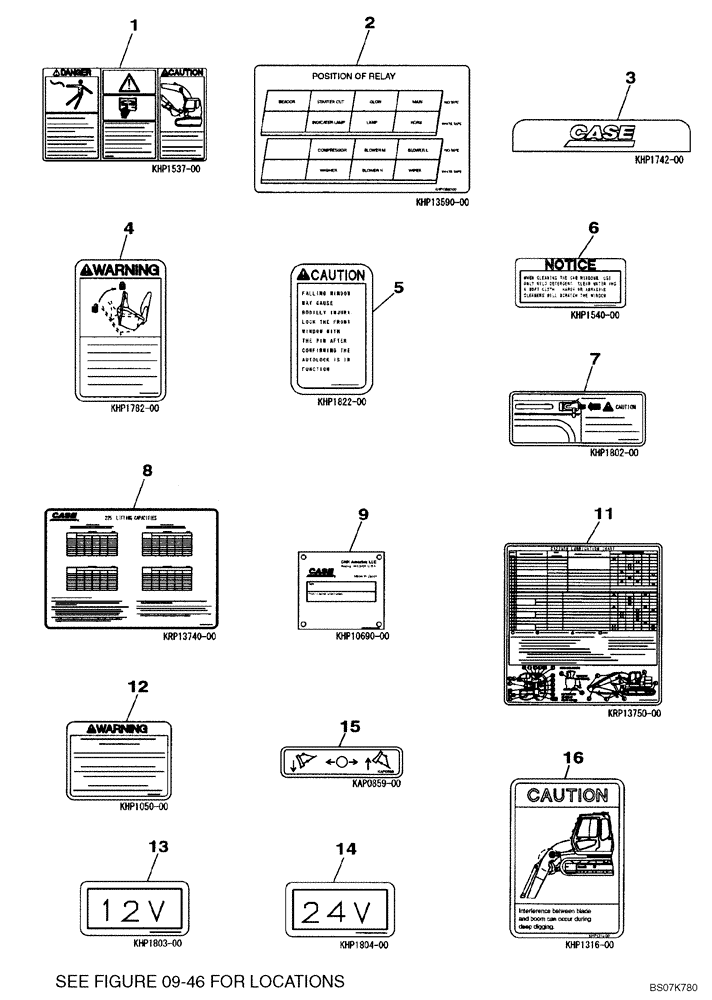

Запчасти Case CX225SR (09-47) - DECALS (09) - CHASSIS/ATTACHMENTS

1

KHP1537

DECAL

See Figure 09-46 for locations

1шт.

2

KHP13590

DECAL

1шт.

3

KHP1742

DECAL

1шт.

4

KHP1782

WARNING DECAL

1шт.

5

KHP1822

WARNING DECAL

1шт.

6

KHP1540

WARNING DECAL

1шт.

7

KHP1802

WARNING DECAL

1шт.

8

KRP13740

DECAL

LABEL, SPL.

1шт.

9

NSS

NOT SOLD SEPARAT

NAMEPLATE

1шт.

10

NSS

NOT SOLD SEPARAT

RIVET

4шт.

11

KRP13751

DECAL

LABEL, LUB, Replaces KRP13750

1шт.

12

162140A1

WARNING DECAL

1шт.

13

KHP1803

WARNING DECAL

1шт.

14

KHP1804

WARNING DECAL

1шт.

15

KAP0859

DECAL

1шт.

16

KHP1316

WARNING DECAL

1шт.
