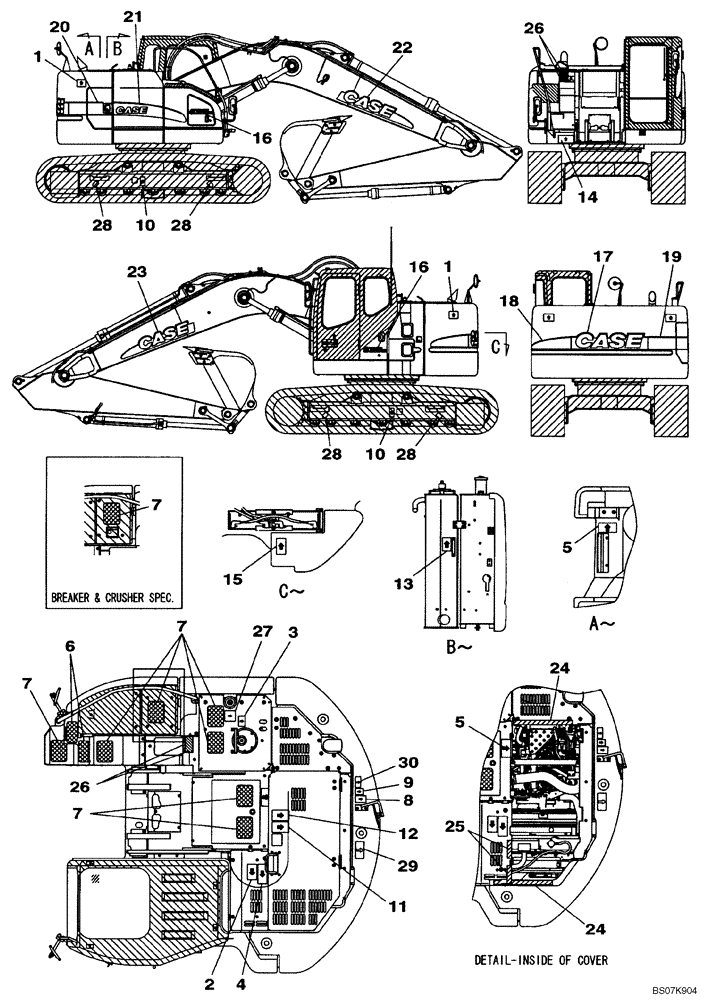

Запчасти Case CX225SR (09-39) - DECALS (09) - CHASSIS/ATTACHMENTS

1

KHP1532

WARNING DECAL

2шт.

2

KHP1533

WARNING DECAL

1шт.

3

KHP1543

DECAL

1шт.

4

KHP1534

WARNING DECAL

1шт.

5

KHP1535

WARNING DECAL

2шт.

6

168484A1

ANTI-SKID STRIP

2шт.

7

151086A1

BUSHING

7шт.

8

156404A1

DECAL

1шт.

9

156468A1

DECAL

1шт.

10

167327A1

WARNING DECAL

2шт.

11

KHP1011

DECAL

1шт.

12

KHP1010

DECAL

1шт.

13

167328A1

DECAL

1шт.

14

167324A1

WARNING DECAL

1шт.

15

KHP1536

WARNING DECAL

1шт.

16

KRP2384

DECAL

CX225SR

2шт.

16

84573925

DECAL

CX225SR

2шт.

17

KRP2385

DECAL

Case Logo, Rear of Machine

1шт.

18

KRP2386

DECAL

Rear of Machine

1шт.

19

KRP2387

DECAL

1шт.

20

KRP2388

DECAL

1шт.

21

KRP2389

DECAL

1шт.

22

KLP0132

DECAL

Case Logo, Boom, Right Hand Side

1шт.

23

KLP0133

DECAL

Case Logo, Boom, Left Hand Side

1шт.

24

157831A1

ADHESIVE STRIP

TAPE

2шт.

25

KHP1809

ANTI-SKID STRIP

2шт.

26

KAP1561

DECAL

2шт.

27

KHP11681

DECAL

1шт.

28

H7947565

DECAL

ADHESIVE POINT ELINGAGE

4шт.

29

KHP12210

DECAL

1шт.

30

KHP13150

DECAL

1шт.
