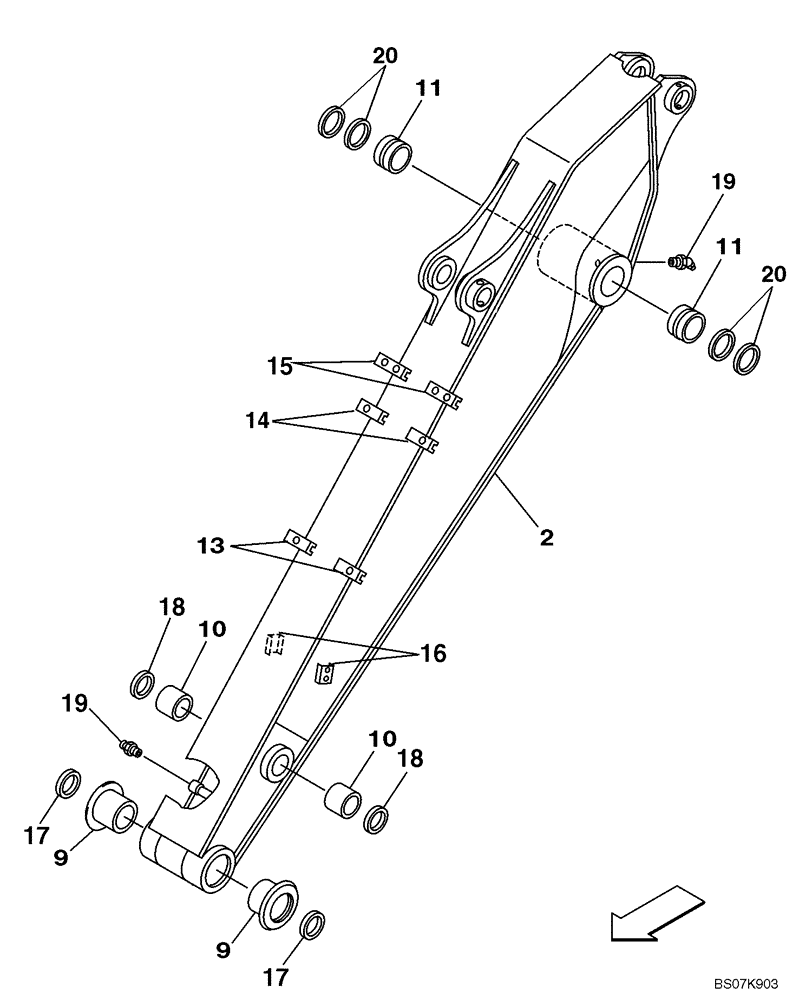

Запчасти Case CX225SR (09-36) - ARM, EXCAVATOR, STD (09) - CHASSIS/ATTACHMENTS

KRV10450

DIPPER

ARM, Incl. 2 - 14; Order From Machinery Price List

1шт.

2

NSS

NOT SOLD SEPARAT

Arm

1шт.

9

KRV2671

BUSHING

2шт.

10

160448A1

BUSHING,75mm ID x 90mm OD x 60mm L

2шт.

11

KRV2397

SELF LUB RING

2шт.

13

151394A1

BAR

2шт.

14

KNV1134

BAR

2шт.

15

KRV3110

BAR

2шт.

16

KRV3117

BAR

2шт.

17

159647A1

SEAL,80mm ID x 95mm OD x 5mm Thk

2шт.

18

160400A1

SEAL,75mm ID x 90mm OD x 5mm Thk

2шт.

19

153630A1

LUBE NIPPLE

3шт.

20

159648A1

SEAL,90mm ID x 105mm OD x 5mm Thk

4шт.
