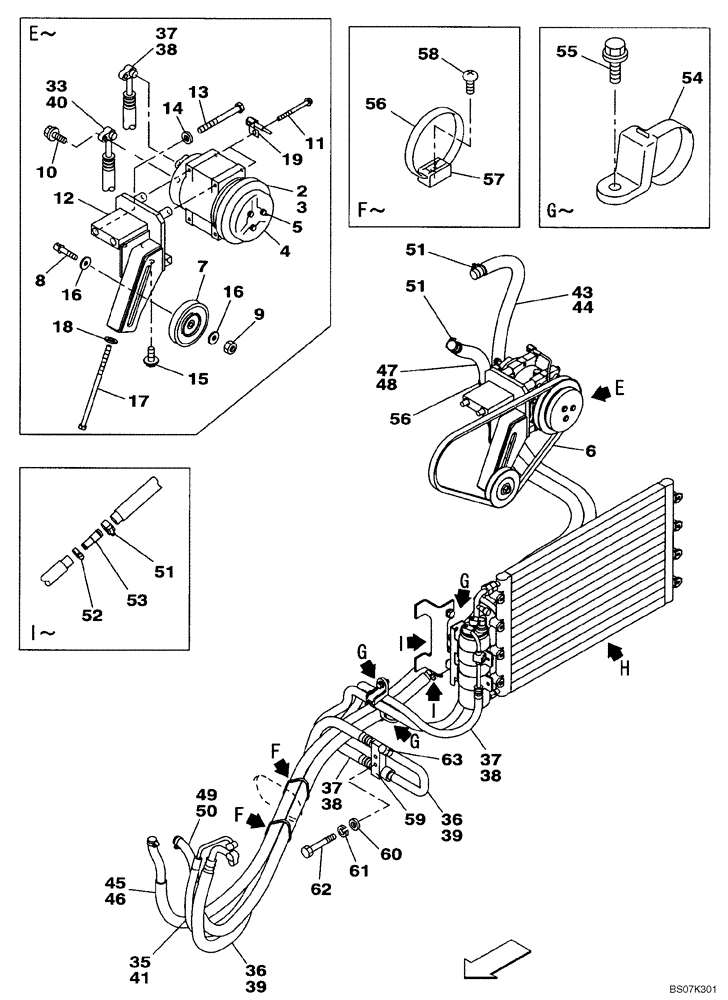

Запчасти Case CX225SR (09-21) - AIR CONDITIONING SYSTEM (09) - CHASSIS/ATTACHMENTS

2

KHR3197

COMPRESSOR

1шт.

KHR3197R

REMAN-COMPRESSOR

CX225SR Tier 3 (3/08-)

1шт.

KHR3197C

CORE-COMPRESSOR

Return Number

1шт.

3

KHR3198

CLUTCH

1шт.

4

KHR3974

PROTECTIVE COVER

1шт.

5

KHR3975

BOLT

3шт.

6

KHR10550

BELT

1шт.

7

KHR11760

PULLEY

1шт.

8

157299A1

SHAFT

1шт.

9

157292A1

NUT

M10

1шт.

10

162457A1

SPECIAL BOLT,Spcl

M8 x 25

2шт.

11

KAR0921

BOLT,Spcl

4шт.

12

KHR10710

SUPPORT

1шт.

13

102R012Y120R

BOLT

M12X120

2шт.

14

150811A1

WASHER

2шт.

15

158919A1

CAPTIVE WASHER SCREW,Hex Wshr Hd, M12 x 1.75 x 35mm, Cl 10.9, Spcl

2шт.

16

151977A1

WASHER

2шт.

17

KHR3171

BOLT,Spcl

M8X160

1шт.

18

183-108VR

SPRING WASHER

1шт.

19

158962A1

CLIP

1шт.

33

KHR16930

HOSE

HOSE, COOLER

1шт.

35

KHR3961

HOSE

1шт.

36

KHR16920

HOSE

HOSE, COOLER

1шт.

37

KHR16910

HOSE

HOSE, COOLER

1шт.

38

KBR0779

PLASTIC-RUBBER TUBE

1шт.

39

166124A1

PLASTIC-RUBBER TUBE

1шт.

40

KHR11730

FLEXIBLE SHEATH

1шт.

41

151736A1

PLASTIC-RUBBER TUBE

1шт.

43

KHR16890

HOSE

HOSE, COOLER

1шт.

44

KBR0779

PLASTIC-RUBBER TUBE

1шт.

45

KHR16900

HOSE

HOSE, RUBBER

1шт.

46

MPR5274

PLASTIC-RUBBER TUBE

1шт.

47

KHR16880

HOSE

RUBBER

1шт.

48

166124A1

PLASTIC-RUBBER TUBE

1шт.

49

KHR16900

HOSE

HOSE, RUBBER

1шт.

50

MPR5274

PLASTIC-RUBBER TUBE

1шт.

51

157915A1

CLAMP

4шт.

52

157914A1

CLAMP

4шт.

53

KAR0215

NIPPLE, LUBE

NIPPLE

2шт.

54

KHR2581

CLAMP

3шт.

55

KHJ1215

BOLT,Spcl

M8X25

3шт.

56

150071A1

MOUNTING CLIP

4шт.

57

150860A1

COLLAR

2шт.

58

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

2шт.

59

KRR1537

PIPE CLAMP

1шт.

60

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

61

183-108VR

SPRING WASHER

2шт.

62

827-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 10.9

2шт.
