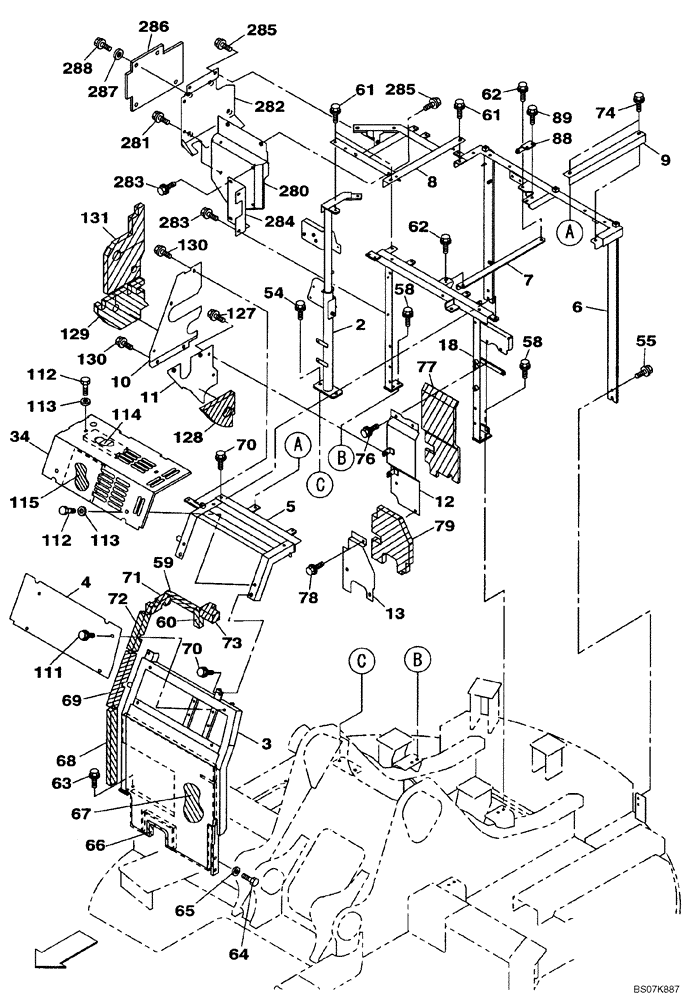

Запчасти Case CX225SR (09-09) - FRAMES, HOUSING COVERS - INSULATION (09) - CHASSIS/ATTACHMENTS

2

KRN14970

SUPPORT ASSY.

FRAME, HOUSE

1шт.

2

KRN19040

SUPPORT ASSY.

FRAME, HOUSE, P.I.N. N8EAK7145 / N8SAK7117...And After

1шт.

3

KRN16230

SUPPORT ASSY.

FRAME, HOUSE

1шт.

3

KRN16231

SUPPORT ASSY.

FRAME, HOUSE, P.I.N. N8EAK7145 / N8SAK7117...And After

1шт.

4

KRN14990

COVER

COVER

1шт.

5

KRN15000

SUPPORT ASSY.

FRAME, HOUSE

1шт.

6

KRN16200

SUPPORT ASSY.

FRAME, HOUSE

1шт.

7

KRN16210

SUPPORT ASSY.

FRAME, HOUSE

1шт.

8

KRN16220

SUPPORT ASSY.

FRAME, HOUSE

1шт.

9

KRN15040

SUPPORT ASSY.

FRAME, HOUSE

1шт.

10

KRN16250

STEEL PLATE

COVER, SIDE

1шт.

10

KRN17440

COVER

P.I.N. N8EAK7123 / N8SAK7111...And After

1шт.

11

KRN15060

STEEL PLATE

COVER, SIDE

1шт.

11

KRN17450

COVER

COVER, SIDE, P.I.N. N8EAK7123 / N8SAK7111...And After

1шт.

11.5

KRN17460

COVER

Not Shown, P.I.N. N8EAK7123 / N8SAK7111...And After

1шт.

12

KRN16270

STEEL PLATE

COVER

1шт.

13

KRN15080

STEEL PLATE

COVER

1шт.

18

KRN16280

SUPPORT ASSY.

FRAME, HOUSE

1шт.

54

166052A1

BOLT

2шт.

34

KRN16680Y2

COVER

1шт.

55

166347A1

BOLT,Sems, M10 x 30mm

4шт.

58

166052A1

BOLT

4шт.

59

KRN2814

SEAL

1шт.

60

KRN16590

SEAL

SEAL, COUSHION

1шт.

61

166052A1

BOLT

4шт.

62

166052A1

BOLT

2шт.

63

166052A1

BOLT

2шт.

64

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

2шт.

65

150409A1

WASHER

2шт.

66

KRN2618

SEAL

1шт.

67

KRN16600

NOISE PROTECTION

INSULATION, ACOUSTIC

1шт.

68

KRN15500

SEAL

SEAL, COUSHION

1шт.

69

KRN16560

SEAL

SEAL, COUSHION

1шт.

70

166052A1

BOLT

3шт.

71

KRN15480

SEAL

SEAL, COUSHION

1шт.

72

KRN16570

SEAL

SEAL, COUSHION

1шт.

73

KRN15270

SEAL

SEAL, COUSHION

1шт.

74

166052A1

BOLT

2шт.

76

166052A1

BOLT

3шт.

77

KRN16490

SEAL

SEAL, COUSHION

1шт.

78

166052A1

BOLT

2шт.

79

KRN15470

SEAL

SEAL, COUSHION

1шт.

88

KRN14910

BRACKET

BRACKET

1шт.

89

166052A1

BOLT

2шт.

111

166052A1

BOLT

4шт.

112

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

113

151977A1

WASHER

4шт.

114

KMB0551

FOAM INSULATION

1шт.

115

KEN0256

NOISE PROTECTION

INSULATION, ACOUSTIC

1шт.

128

KRN15200

SEAL

SEAL, COUSHION

1шт.

129

KRN15430

SEAL

SEAL, COUSHION

1шт.

130

166052A1

BOLT

5шт.

131

KRN16520

SEAL

SEAL, COUSHION

1шт.

280

KRN15150

COVER

COVER

1шт.

281

166052A1

BOLT

2шт.

282

KRN16700

STEEL PLATE

COVER

1шт.

283

166052A1

BOLT

4шт.

284

KRN15170Y2

SUPPORT ASSY.

1шт.

285

166052A1

BOLT

4шт.

286

KRN16710

SKIRT COVER

GLASS WOOL

1шт.

287

163356A1

WASHER

4шт.

288

166345A1

BOLT

4шт.
