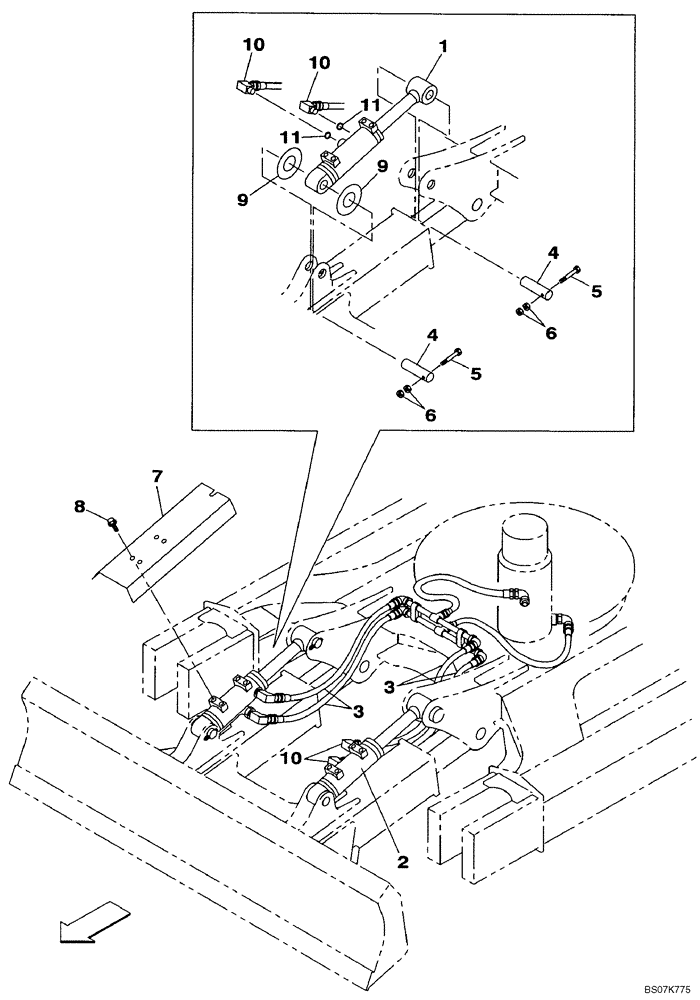

Запчасти Case CX225SR (08-93) - HYDRAULICS - BLADE, DOZER (08) - HYDRAULICS

1

KRV3282

HYDRAULIC CYLINDER

Blade, Right Hand, See Figure 08-94

1шт.

1

KRV3282R

REMAN-HYD CYLINDER

CX225SR CRAWLER EXCAVATOR TIER 3, Blade, Right Hand (3/08-)

1шт.

1

KRV3282C

CORE-HYD CYLINDER

Return Number

1шт.

2

KRV3283

HYDRAULIC CYLINDER

Blade, Left Hand, See Figure 08-95

1шт.

2

KRV3283R

REMAN-HYD CYLINDER

CX225SR CRAWLER EXCAVATOR TIER 3, Blade, Left Hand (3/08-)

1шт.

2

KRV3283C

CORE-HYD CYLINDER

Return Number

1шт.

3

KRV3316

HYDRAULIC HOSE

4шт.

4

KRV3315

PIN

4шт.

5

514-1112

BOLT,Hex, M16 x 1.5 x 140mm, Cl 10.9

4шт.

6

829-13416

NUT,M16 x 1.5, Cl 10

8шт.

7

KRV3317

COVER

COVER

2шт.

8

167893A1

BOLT

8шт.

9

KNV0536

SHIM

2шт.

10

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

Incl. 12

4шт.

11

154487A1

O-RING

1шт.
