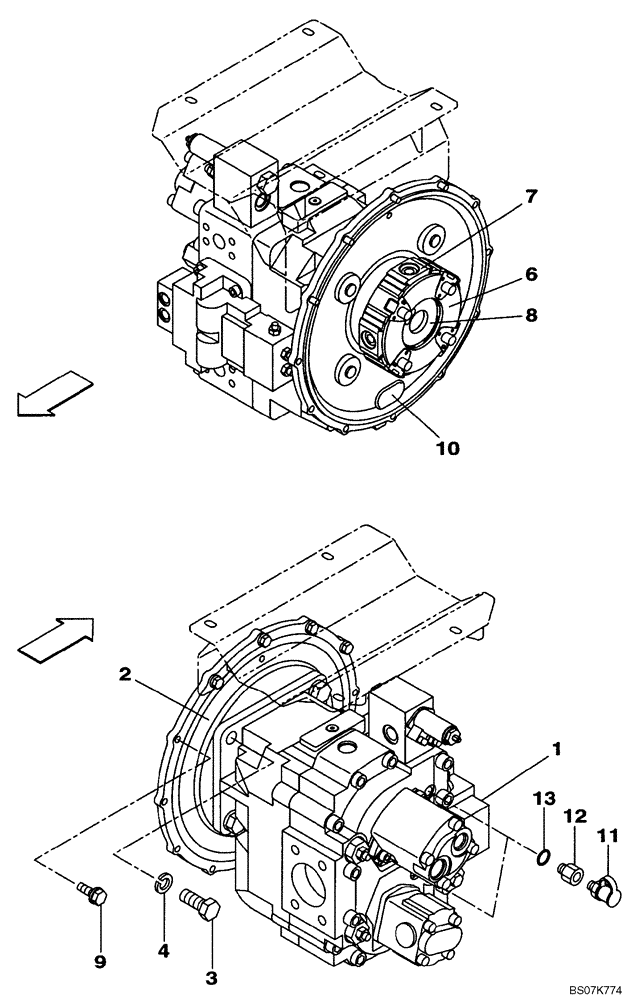

Запчасти Case CX225SR (08-92) - PUMP ASSY, HYDRAULIC - COUPLING - MODELS WITH DOZER BLADE (08) - HYDRAULICS

1

KRJ21530

HYDRAULIC PUMP

1шт.

1

KRJ21530R

REMAN-HYD PUMP

CX225SR CRAWLER EXCAVATOR TIER 3, HYDRAULIC - COUPLING - MODELS WITH DOZER BLADE (3/08-)

1шт.

1

KRJ21530C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

KRJ6616

FLANGE

1шт.

3

627-20050

BOLT,Hex, M20 x 2.5 x 50mm, Cl 10.9, Full Thd

4шт.

4

183-120VR

SPRING WASHER

4шт.

5

KRJ10340

COUPLING

Incl. 6 - 8

1шт.

6

NSS

NOT SOLD SEPARAT

Element

1шт.

7

NSS

NOT SOLD SEPARAT

Insert, Coupling

4шт.

8

NSS

NOT SOLD SEPARAT

Insert, Coupling

1шт.

9

166347A1

BOLT,Sems, M10 x 30mm

M10X30

7шт.

10

KHJ2656

GROMMET

1шт.

11

1541849C1

COUPLING

2шт.

12

KHJ2620

BUSHING

Incl. 13

2шт.

13

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.
