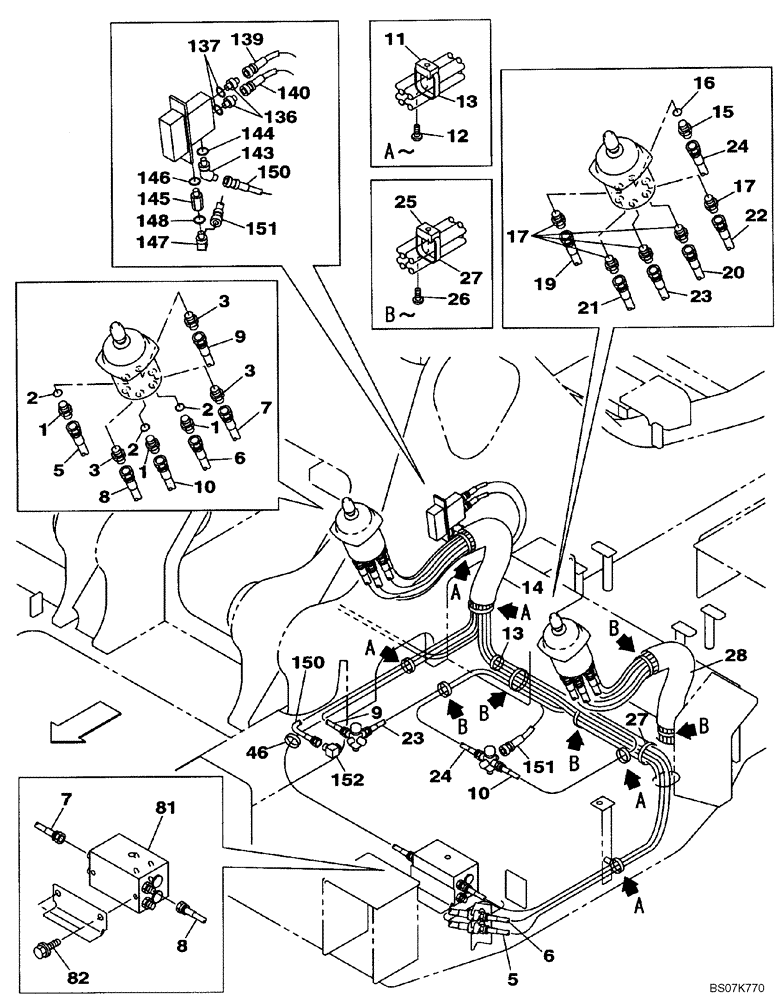

Запчасти Case CX225SR (08-90[02]) - PILOT CONTROL LINES, ATTACHMENT - MODELS WITH DOZER BLADE (08) - HYDRAULICS

1

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 2

3шт.

2

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

3

161841A1

HYD CONNECTOR

3шт.

5

KHJ2478

HOSE

2300 mm

1шт.

6

KHJ2478

HOSE

2300 mm

1шт.

7

KHJ2336

HOSE

1800 mm

1шт.

8

KHJ2478

HOSE

2300 mm

1шт.

9

KHJ2182

HOSE

1450 mm

1шт.

10

KHJ2333

HOSE

1920 mm

1шт.

11

150860A1

COLLAR

5шт.

12

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

5шт.

13

150498A1

MOUNTING CLIP

9шт.

14

KHJ2578

PROTECTOR

1шт.

15

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 16

1шт.

16

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

17

161841A1

HYD CONNECTOR

5шт.

19

KHJ2387

HOSE

15500 mm

1шт.

20

KHJ2387

HOSE

15500 mm

1шт.

21

KHJ2387

HOSE

15500 mm

1шт.

22

KHJ2387

HOSE

15500 mm

1шт.

23

KHJ2335

HOSE

1780 mm

1шт.

24

KHJ2336

HOSE

1800 mm

1шт.

25

150860A1

COLLAR

5шт.

26

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

5шт.

27

150498A1

MOUNTING CLIP

6шт.

28

KHJ2578

PROTECTOR

1шт.

46

150498A1

MOUNTING CLIP

3шт.

81

KRJ6912

VALVE

See Figure 08-76

1шт.

82

166052A1

BOLT

2шт.

136

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl.137

2шт.

137

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

139

KHJ2081

HOSE

3200 mm

2шт.

140

KHJ2081

HOSE

3200 mm

1шт.

143

KHJ0994

ADAPTER

Incl. 144

1шт.

144

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

145

162525A1

STUD

Incl. 146

1шт.

146

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

147

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 148

1шт.

148

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

150

KHJ2052

HOSE

1100 mm

1шт.

151

KHJ2052

HOSE

1100 mm

1шт.

152

163814A1

ELBOW

1шт.
