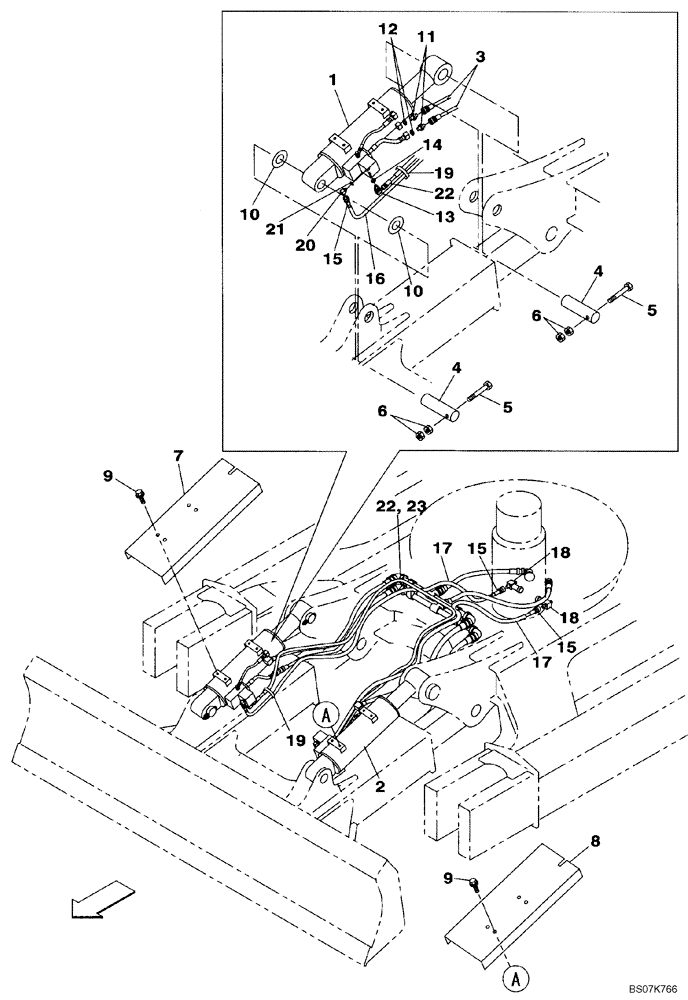

Запчасти Case CX225SR (08-84) - HYDRAULICS - BLADE, DOZER (HBCV) (08) - HYDRAULICS

1

KRV15250

HYDRAULIC CYLINDER

Blade, Right Hand, See Figure 08-85

1шт.

1

KRV15250R

REMAN-HYD CYLINDER

CX225SR CRAWLER EXCAVATOR TIER 3, Blade, Right Hand (3/08-)

1шт.

1

KRV15250C

CORE-HYD CYLINDER

Return Number

1шт.

2

KRV15260

HYDRAULIC CYLINDER

Blade, Left Hand, See Figure 08-86

1шт.

2

KRV15260R

REMAN-HYD CYLINDER

CX225SR CRAWLER EXCAVATOR TIER 3, Blade, Left Hand (3/08-)

1шт.

2

KRV15260C

CORE-HYD CYLINDER

Return Number

1шт.

3

KRV3316

HYDRAULIC HOSE

4шт.

4

KRV3315

PIN

4шт.

5

514-1112

BOLT,Hex, M16 x 1.5 x 140mm, Cl 10.9

4шт.

6

829-13416

NUT,M16 x 1.5, Cl 10

8шт.

7

KRV15280

COVER

1шт.

8

KRV15290

COVER

1шт.

9

167893A1

BOLT

8шт.

10

KNV0536

SHIM

2шт.

11

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

Incl. 12

4шт.

12

154487A1

O-RING

4шт.

13

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 14

2шт.

14

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

15

152989A1

HOSE ASSY.

2шт.

16

151925A1

PLASTIC-RUBBER TUBE,10.5 mm ID, 14.1 mm OD, 1000 mm Length

2шт.

17

151926A1

TUBE

2шт.

18

KHJ1381

FITTING

2шт.

19

150067A1

MOUNTING CLIP

10шт.

20

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 21

2шт.

21

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

22

AFV0044

HYDRAULIC HOSE

1шт.

23

KRH1396

PLASTIC-RUBBER TUBE

1шт.
