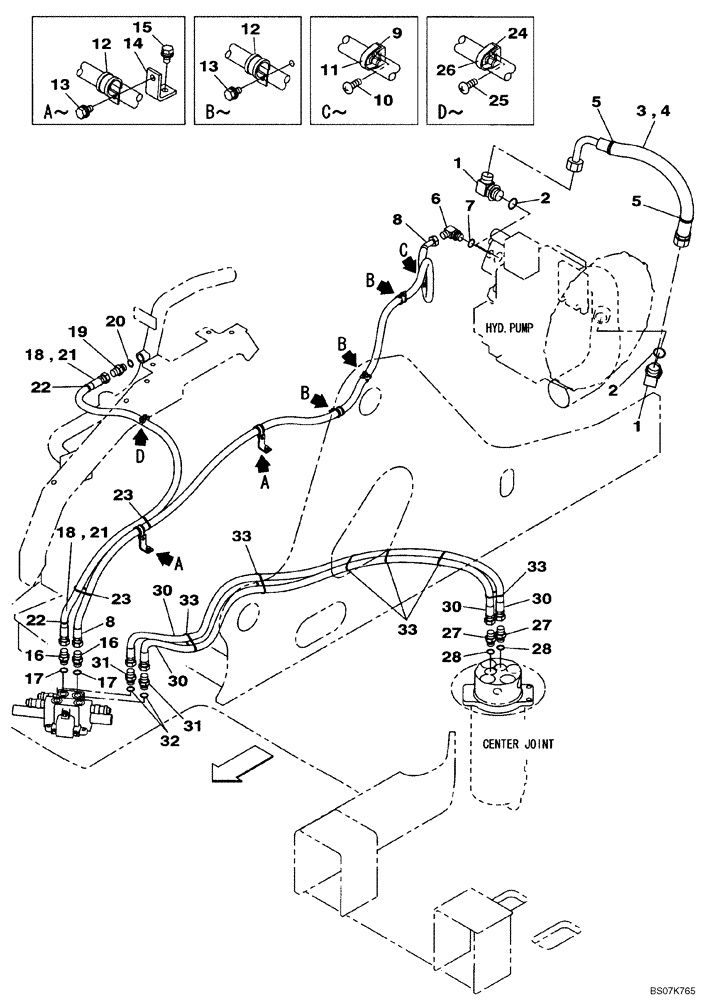

Запчасти Case CX225SR (08-83) - BLADE CYLINDER LINE (08) - HYDRAULICS

1

157581A1

ELBOW,90 Degree, 1" O-Ring x 1"

Incl. 2

2шт.

2

154523A1

O-RING

1шт.

3

KRJ19610

HYDRAULIC HOSE,600.00 mm

Assy

1шт.

4

KHV0571

PLASTIC-RUBBER TUBE

TUBE, CORRUGATED

1шт.

5

150067A1

MOUNTING CLIP

2шт.

6

150919A1

ELBOW,90 Degree, 1/2" O-Ring x 1/2"

Incl. 7

1шт.

7

154487A1

O-RING

1шт.

8

KRJ19620

HYDRAULIC HOSE

Assy

1шт.

9

150860A1

COLLAR

1шт.

10

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

1шт.

11

150498A1

MOUNTING CLIP

1шт.

12

KHJ1076

CLAMP

5шт.

13

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

M6X12

5шт.

14

KRJ6988

BREATHER

2шт.

15

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

M6X12

2шт.

16

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

Incl. 17

2шт.

17

154487A1

O-RING

1шт.

18

KNJ2836

HYDRAULIC HOSE,12.70 mm ID x 1600.00 mm

1шт.

19

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

Incl. 20

1шт.

20

154487A1

O-RING

1шт.

21

158064A1

PLASTIC-RUBBER TUBE

1шт.

22

150067A1

MOUNTING CLIP

2шт.

23

150498A1

MOUNTING CLIP

2шт.

24

150860A1

COLLAR

1шт.

25

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

1шт.

26

150498A1

MOUNTING CLIP

1шт.

27

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

Incl. 28

2шт.

28

154487A1

O-RING

1шт.

29

NSS

NOT SOLD SEPARAT

HOSE, SPL

1шт.

30

KRJ20930

HYDRAULIC HOSE

Assy

2шт.

31

159361A1

ADAPTER

Incl. 32, Replaces 151650A1

2шт.

32

154487A1

O-RING

1шт.

33

150498A1

MOUNTING CLIP

6шт.
