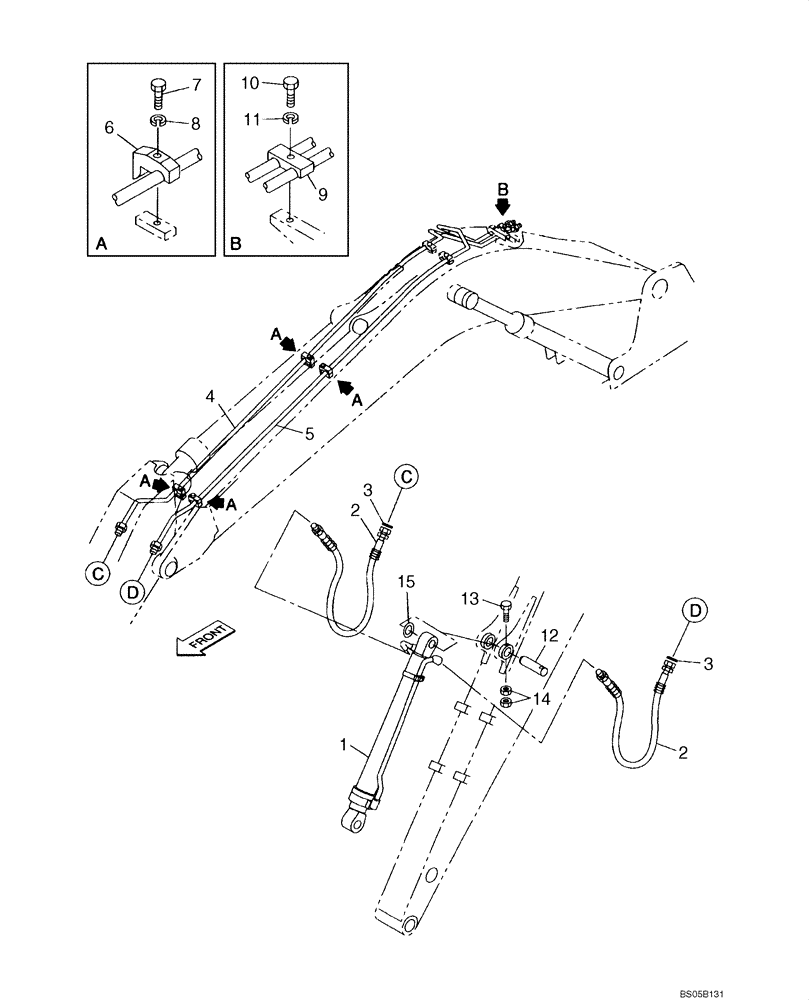

Запчасти Case CX225SR (08-65) - HYDRAULICS - BUCKET, 3,0 METER (9 FT 10 IN) ARM (08) - HYDRAULICS

1

KRV3237

BUCKET CYLINDER

Bucket, See Figure 08-59

1шт.

1

KRV3237R

REMAN-HYD CYLINDER

CX225SR CRAWLER EXCAVATOR TIER 3, Bucket (3/08-)

1шт.

1

KRV3237C

CORE-HYD CYLINDER

Return Number

1шт.

2

KRV2407

HYDRAULIC HOSE,19.00 mm ID x 1550.00 mm

2шт.

3

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

3-1

154503A1

O-RING

Not Shown

2шт.

4

KRV3320

HYD TUBE

1шт.

5

KRV3559

HYD TUBE

1шт.

6

151486A1

CLAMP BRACKET

4шт.

7

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

4шт.

8

150811A1

WASHER

4шт.

9

152085A1

COLLAR

1шт.

10

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

1шт.

11

150811A1

WASHER

1шт.

12

160446A1

PIN,75mm OD x 241mm L

1шт.

13

514-1223

BOLT,Hex, M20 x 1.5 x 150mm, Cl 10.9

1шт.

14

829-11420

NUT,M20 x 1.5, Cl 10

2шт.

15

160452A1

SHIM

1,30 mm (0,051 in)

1шт.
