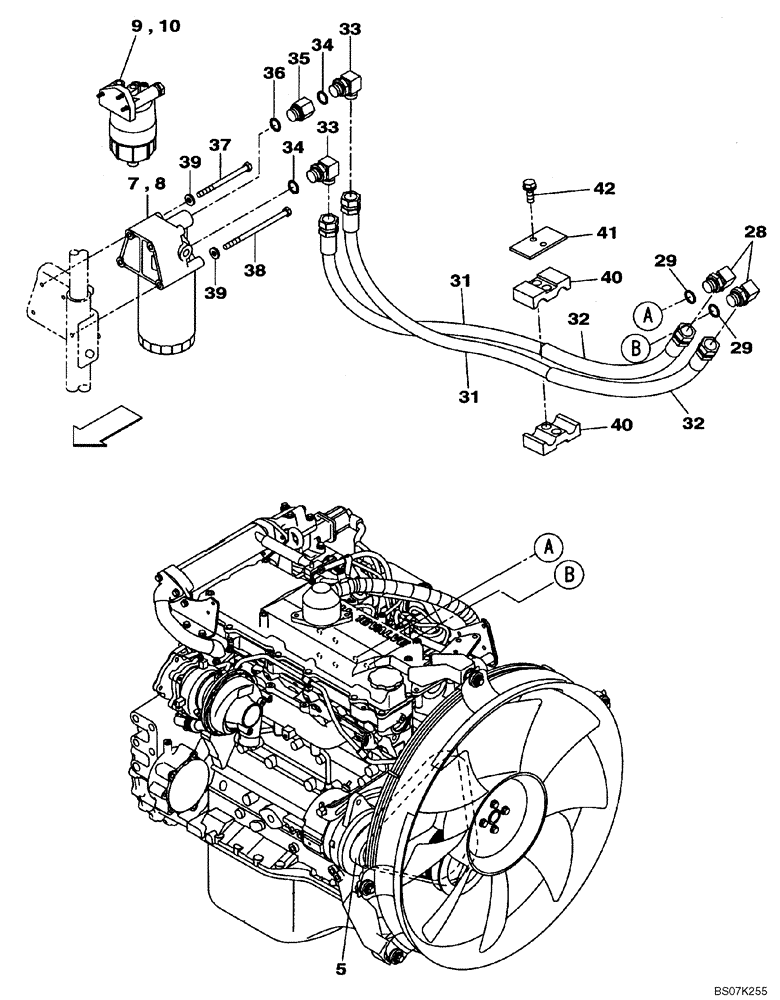

Запчасти Case CX225SR (02-02) - ENGINE OIL SUPPLY LINES (02) - ENGINE

5

KRH12420

BELT

1шт.

7

87365563

FILTER ASSY

FILTER, Oil

1шт.

8

87379813

ENGINE OIL FILTER

1шт.

9

87379042

FILTER ASSY

1шт.

10

87365565

FUEL FILTER

1шт.

31

KRH11960

HYDRAULIC HOSE

Assy

2шт.

32

157862A1

PLASTIC-RUBBER TUBE

(Replaces KBR0819)

2шт.

33

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

Incl. 33

2шт.

34

154503A1

O-RING

1шт.

35

159198A1

ADAPTER

Incl. 36

1шт.

36

154503A1

O-RING

1шт.

37

102R008Y110R

BOLT

M8X110

2шт.

38

KHH0515

BOLT

M8X140

2шт.

39

153081A1

WASHER

4шт.

40

KRH10200

COLLAR

2шт.

41

KRH10210

PLATE

1шт.

42

166347A1

BOLT,Sems, M10 x 30mm

M10X30

2шт.
