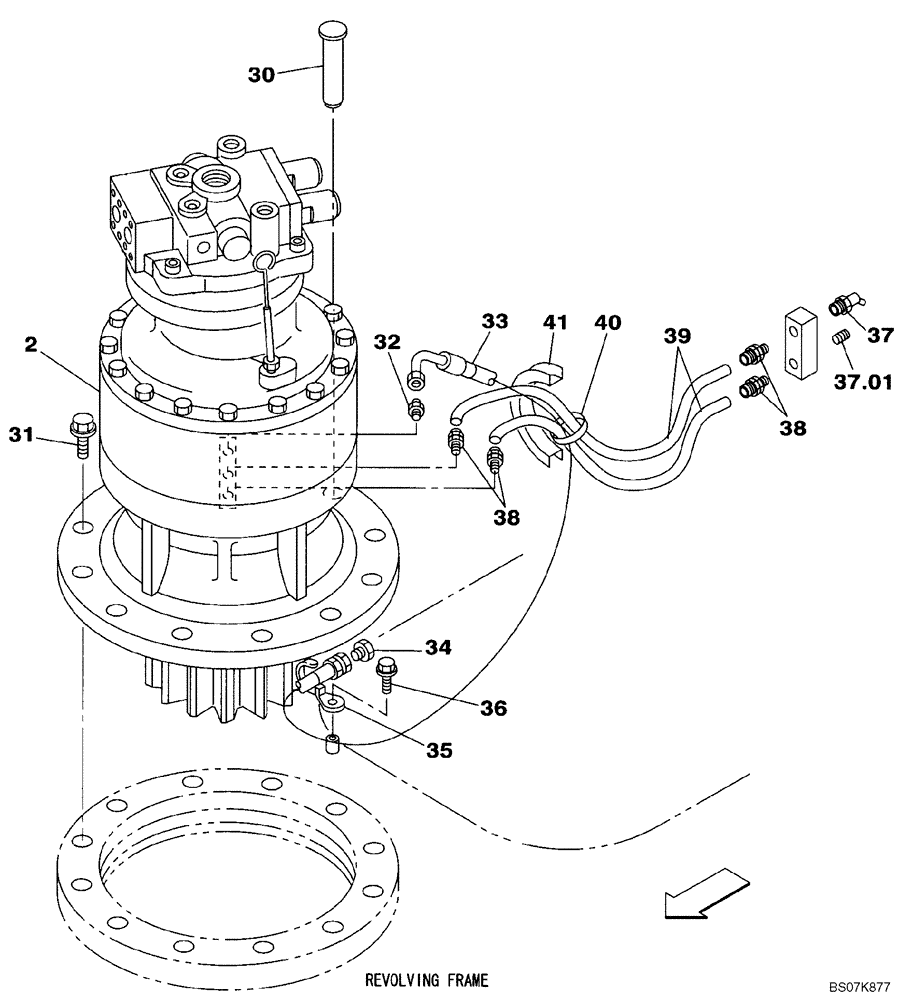

Запчасти Case CX225SR (08-51) - MOUNTING - SWING MOTOR (KRC0228) (08) - HYDRAULICS

2

LN00111

REDUCER

1шт.

LN00111R

REMAN-REDUCTION UNIT

CX225SR TIER 3 (3/08-)

1шт.

LN00111C

CORE-REDUCTION UNIT

Return Number

1шт.

30

158955A1

HEADED PIN

1шт.

31

166354A1

BOLT,Sems, M20 x 75mm

11шт.

32

153597A1

ADAPTER

1шт.

33

KHJ1639

HYDRAULIC HOSE

1шт.

34

KHP0501

PLUG

1шт.

35

KHR2583

CLAMP

1шт.

36

159602A1

BOLT,Sems, Hex, M6 x 16mm

1шт.

37

153631A1

LUBE NIPPLE,1/8"-27 NPT

1шт.

37.01

158352A1

PLUG

If Used

1шт.

38

150190A1

FITTING

4шт.

39

KRC0237

PLASTIC-RUBBER TUBE

2шт.

40

150496A1

MOUNTING CLIP

1шт.

41

KMJ2086

RUBBER SEAL

1шт.
