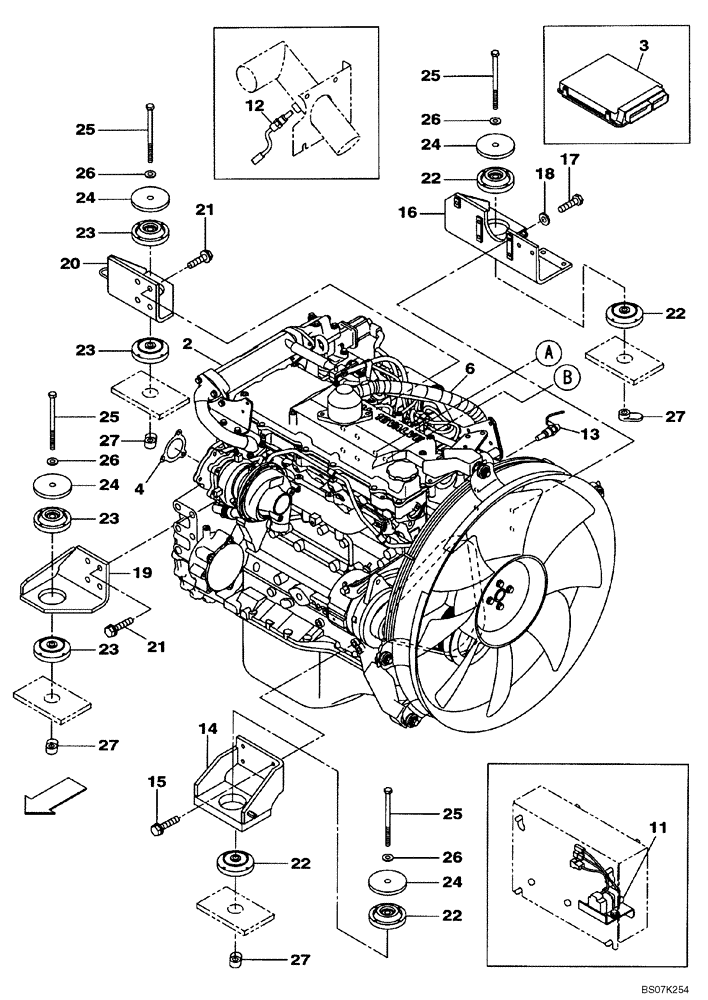

Запчасти Case CX225SR (02-01) - ENGINE MOUNTING - ENGINE (02) - ENGINE

2

KRH12450

ENGINE

ENGINE, See Figures 02-08 - 02-36, 03-04 - 03-09, 04-01 - 04-04

1шт.

2

KRH12450EC

CORE-ENGINE

Environmental Core, For N.A. Only

1шт.

3

87714799

ECU

CONTROLLER ENGINE, See Figure 04-02

1шт.

3

47487416R

REMAN ELECT CONTROL

Engine

1шт.

3

47487416C

CORE-ELECTRONIC CONT

Return Number

1шт.

4

167996A1

GASKET

1шт.

6

KRH10740

WIRE HARNESS

1шт.

11

150070A1

RELAY

1шт.

12

KHH0535

SENSOR

1шт.

13

KHH0536

SENSOR

1шт.

14

KRH10990

ENGINE MOUNT

1шт.

15

166347A1

BOLT,Sems, M10 x 30mm

M10X30

4шт.

16

KRH11000

ENGINE MOUNT

1шт.

17

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

5шт.

18

150409A1

WASHER

5шт.

19

KRH11660

ENGINE MOUNT

SUPPORT, ENGINE

1шт.

20

KRH11670

ENGINE MOUNT

SUPPORT, ENGINE

1шт.

21

166373A1

BOLT,Sems, M16 x 40mm

M16X40

8шт.

22

KRH10870

SILENTBLOC

4шт.

23

KRH10860

RUBBER MOUNTING

4шт.

24

KRH10190

PLATE

4шт.

25

827-16130

BOLT,Hex, M16 x 2 x 130mm, Cl 10.9

4шт.

26

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

4шт.

27

KRH1251

SPECIAL NUT

4шт.

28

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

2шт.

29

154503A1

O-RING

1шт.

30

167331A1

SENSOR

Not Shown, See Figure 04-05 Water Temperature

1шт.
