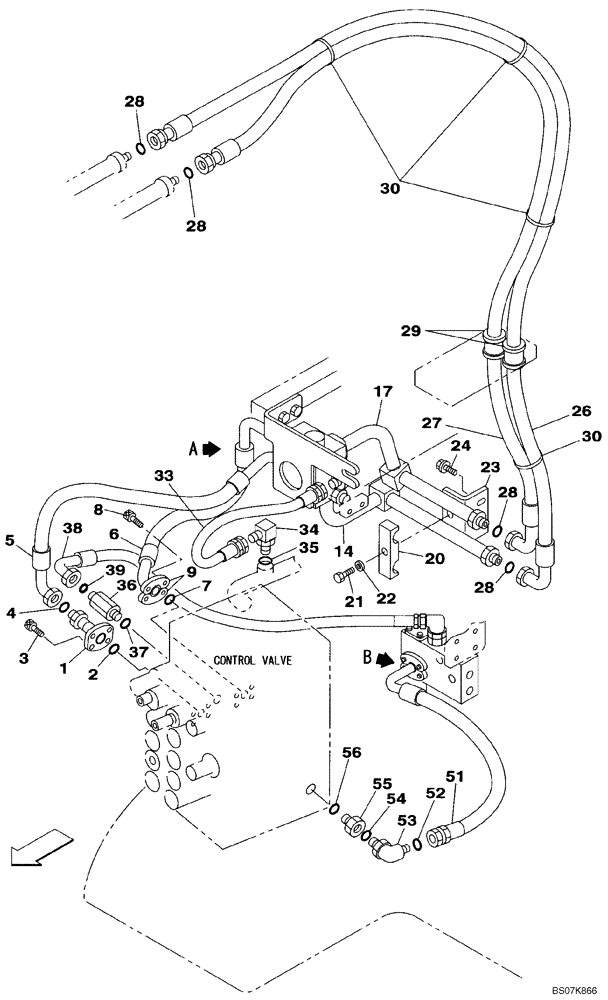

Запчасти Case CX225SR (08-33) - HYDRAULICS, AUXILIARY - MULTI-PURPOSE + 3 WAY VALVE (08) - HYDRAULICS

1

KRJ6832

PIPE FITTING

1шт.

2

154548A1

O-RING

1шт.

3

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

4шт.

4

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

5

KRJ6838

HYDRAULIC HOSE

670 mm ( 26-1/2 in)

1шт.

6

KRJ6839

HYDRAULIC HOSE,840.00 mm

1шт.

7

155211A1

O-RING

3шт.

8

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

12шт.

9

153459A1

FLANGE

6шт.

14

KRJ7143

HYD TUBE

1шт.

17

KRJ7144

HYD TUBE

1шт.

20

KRJ6930

PIPE CLAMP

1шт.

21

827-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

1шт.

22

150811A1

WASHER

M12

1шт.

23

KRJ6967

BREATHER

1шт.

24

166052A1

BOLT

2шт.

26

KRJ7134

HYDRAULIC HOSE,2550.00 mm

1шт.

27

KRJ7137

HYDRAULIC HOSE,2500.00 mm

1шт.

28

KHJ1361

O-RING,0.07" Thk x 0.926" ID

4шт.

29

KHJ2679

HOSE CLAMP

2шт.

30

150071A1

MOUNTING CLIP

4шт.

33

KSJ2079

HYDRAULIC HOSE,25.00 mm ID x 750.00 mm

1шт.

34

157581A1

ELBOW,90 Degree, 1" O-Ring x 1"

Incl. 35

1шт.

35

154523A1

O-RING

1шт.

36

KHJ1495

ADAPTER

1шт.

37

154503A1

O-RING

1шт.

38

KRJ6836

HYDRAULIC HOSE,640.00 mm

1шт.

39

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

51

KRJ6837

HYDRAULIC HOSE,670.00 mm

1шт.

52

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

53

KHJ1804

ELBOW

Incl. 54

1шт.

54

154503A1

O-RING

1шт.

55

159198A1

ADAPTER

Incl. 56

1шт.

56

154503A1

O-RING

1шт.
