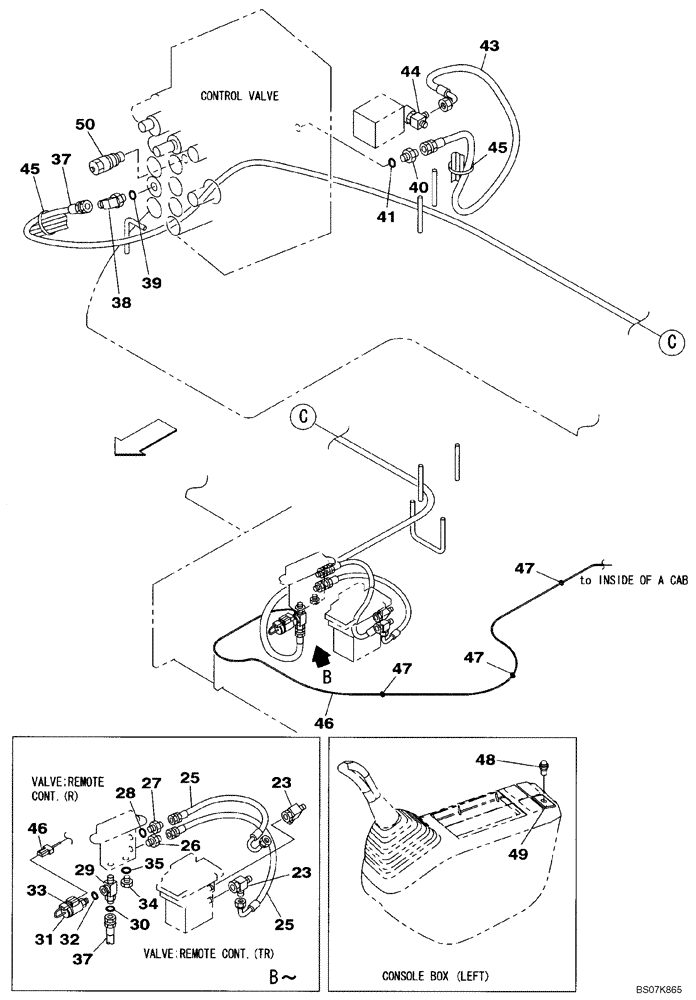

Запчасти Case CX225SR (08-32) - HYDRAULICS, AUXILIARY - SINGLE ACTING CIRCUIT (08) - HYDRAULICS

26

161841A1

HYD CONNECTOR

1шт.

27

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 43

1шт.

28

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

29

167666A1

FITTING

1шт.

30

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

31

KHR10820

PRESSURE SWITCH

1шт.

32

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

33

150067A1

MOUNTING CLIP

1шт.

34

159002A1

PLUG

Incl. 45

1шт.

35

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

36

NSS

NOT SOLD SEPARAT

1шт.

37

KHJ2313

HOSE

3300 mm (130 in)

1шт.

38

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 49

1шт.

39

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

40

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 51

1шт.

41

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

42

NSS

NOT SOLD SEPARAT

1шт.

43

KHJ2090

HOSE

1шт.

44

KHJ2130

TEE

1шт.

45

150496A1

MOUNTING CLIP

2шт.

46

KRR13860

HARNESS

1шт.

47

150496A1

MOUNTING CLIP

250 mm

3шт.

48

KHR19620

INSTRUMENT LIGHT

1шт.

49

KHR19630

PROTECTION CAP

1шт.

50

KRJ7014

VALVE, PRESSURE RELI

EF

1шт.
