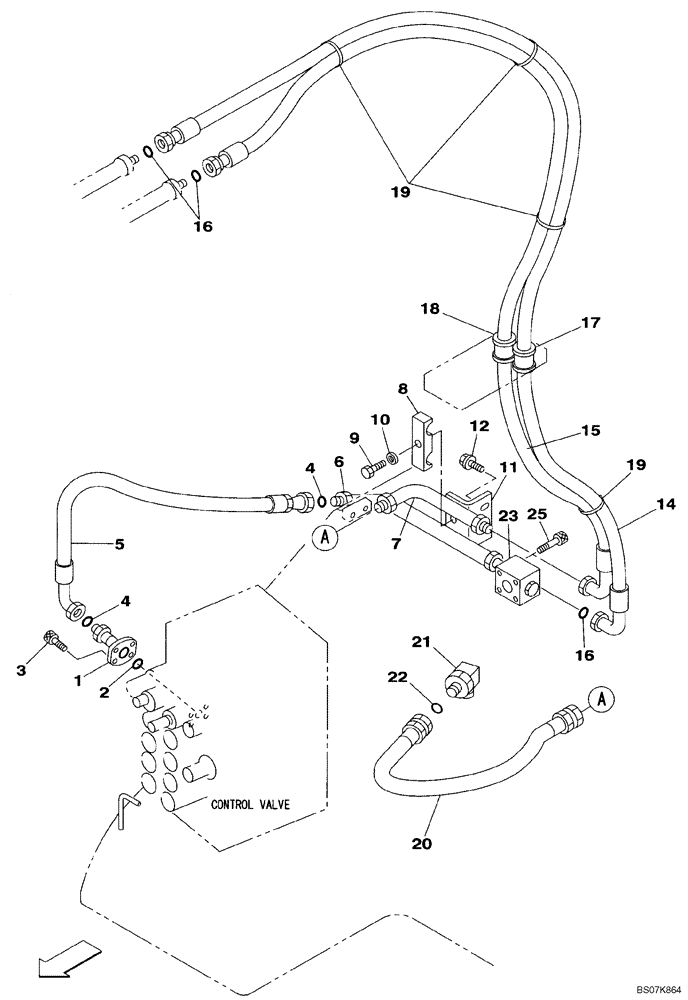

Запчасти Case CX225SR (08-31) - HYDRAULICS, AUXILIARY - SINGLE ACTING CIRCUIT (08) - HYDRAULICS

1

KRJ6832

PIPE FITTING

1шт.

2

154548A1

O-RING

1шт.

3

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

4шт.

4

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.

5

KRJ6969

HYDRAULIC HOSE,850.00 mm

1шт.

6

KRJ6965

HYD TUBE

1шт.

7

KRJ6966

HYD TUBE

1шт.

8

KRJ6930

PIPE CLAMP

1шт.

9

827-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

1шт.

10

150811A1

WASHER

M12

1шт.

11

KRJ6967

BREATHER

1шт.

12

166052A1

BOLT

2шт.

14

KRJ7134

HYDRAULIC HOSE,2550.00 mm

1шт.

15

KRJ7211

HYDRAULIC HOSE,2500.00 mm

1шт.

16

KHJ1361

O-RING,0.07" Thk x 0.926" ID

3шт.

17

KHJ2679

HOSE CLAMP

1шт.

18

KHJ2679

HOSE CLAMP

1шт.

19

150071A1

MOUNTING CLIP

4шт.

20

KSJ2079

HYDRAULIC HOSE,25.00 mm ID x 750.00 mm

1шт.

21

157581A1

ELBOW,90 Degree, 1" O-Ring x 1"

Incl. 22

1шт.

22

154523A1

O-RING

1шт.

23

KHJ2130

TEE

1шт.

24

154625A1

O-RING

1шт.

25

KHJ2084

HOSE

2шт.
